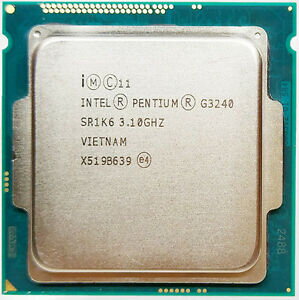

Intel Pentium G3240, LGA1150

Essentials

Product Collection Intel® Pentium® Processor G Series
Code Name Products formerly Haswell
Vertical Segment Desktop
Processor Number G3240
Status Discontinued
Launch Date Q2'14
Expected Discontinuance 07/14/2017
Lithography 22 nm

Performance

# of Cores 2
# of Threads 2
Processor Base Frequency 3.10 GHz
Cache 3 MB SmartCache
Bus Speed 5 GT/s DMI2
TDP 53 W

Supplemental Information

Embedded Options Available No

Memory Specifications

Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3-1333, DDR3L-1333 @ 1.5V
Max # of Memory Channels 2
Max Memory Bandwidth 21.3 GB/s
ECC Memory Supported ‡ Yes

Processor Graphics

Processor Graphics ‡ Intel® HD Graphics for 4th Generation Intel® Processors
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 1.7 GB
Graphics Output eDP/DP/HDMI/DVI/VGA
Max Resolution (HDMI 1.4)‡ 1920×1080@60Hz
Max Resolution (DP)‡ 2560×1600@60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ 2560×1600@60Hz
Max Resolution (VGA)‡ 1920×1200@60Hz
DirectX* Support 11.1/12
OpenGL* Support 4.3
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 3

Expansion Options

Scalability 1S Only
PCI Express Revision Up to 3.0
PCI Express Configurations ‡ Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1150
Max CPU Configuration 1
Thermal Solution Specification PCG 2013C
TCASE 72°C
Package Size 37.5mm x 37.5mm
Low Halogen Options Available Yes

Advanced Technologies

Intel® Optane™ Memory Supported ‡ No
Intel® Turbo Boost Technology ‡ No
Intel® vPro™ Platform Eligibility ‡ No
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Stable Image Platform Program (SIPP) No

Security & Reliability

Intel® AES New Instructions No
Intel® Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
