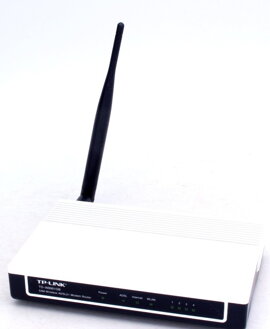

TP-LINK TD-W8901GB

Interface 4 10/100Mbps RJ45 Ports
1 RJ11 Port
Button 1 Power On/Off Switch
External Power Supply 9VDC/0.85A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 6.9×4.7×1.1 in. (174×120×29mm)
Antenna Type Omni directional, Detachable, Reverse SMA
Antenna Gain 5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11g, 802.11b
Frequency 2.4-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
Security NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death
Management Web Based Configuration (HTTP), Remote management, Telnet management, Command Line Interface, SSL
for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Port Forwarding Virtual server, DMZ, ACL(Access Control List)
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC – Up to 8 PVCs,
Advanced Features Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT); PVC/Ethernet Port Mapping
VLAN, 802.1P, Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP
OTHERS
Certification CE, FCC, RoHS
Package Contents TD-W8901GB
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
