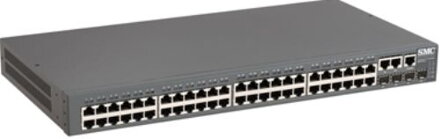

SMC SMC8150L2, 48-port managed gigabit switch

PORTS • SMC8126L2 • 26 10/100/1000BASE-T ports • SMC8150L2 • 50 10/100/1000 ports • 4 SFP transceiver slots • 1 Console portNETWORK INTERFACE • 10/100/1000 BASE-T ports • SFP Transceiver slots supporting SX, LX and ZX SFP • Multimode fiber cable; 62.5/125 or 50/125 microns • Singlemode fiber cable: 9/125 micronSWITCHING FABRIC • SMC8126L2 • 52Gbps • 38.7Mpps • SMC8150L2 • 100G • 74.4MppsBUFFER ARCHITECTURE • 0.5MbytesSWITCHING DATABASE • 8K MAC address entriesLED • System: Power, Diag Port: Link/Act • Port: Link/ActTEMPERATURE • Operating: 0 to 50 °C / 32 to 122 °F • Storage: -40 to 70 °C / -40 to 158 °FHUMIDITY • Operating: 10% to 90% (non-condensing)WEIGHT • SMC8126L2 • 2.87Kg / 6.32lbs • SMC8150L2 • 3.26Kg / 7.18lbsDIMENSIONS • 44 x 23 x 4.4cm / 17.3 x 9.0 x 1.7inAC INPUT • SMC8126L2 • 100 to 240 V, 50-60 Hz, 1.5A • SMC8150L2 • 100 to 240 V, 50-60 Hz, 2.0APOWER SUPPLY • Internal, auto-ranging transformer: 100 to 240 VAC, 47 to 63HzPOWER CONSUMPTION • SMC8126L2 • 38W • SMC8150L2 • 65WMAXIMUM CURRENT • SMC8126L2 • 0.25 A @ 115 VAC • 0.12 A @ 230 VAC • SMC8150L2 • 1.5 A @ 115 VAC • 0.8 A @ 230 VACMTBF • 8 YearsSWITCH FEATURES • Spanning Tree Protocol (802.1D, .1w. 1s) • Forwarding Mode • Store-and-forward • VLAN Support • Up to 255 groups; port-based or with 802.1Q • VLAN tagging, GVRP for automatic VLAN learning • 802.1v (Protocol based Vlans) • Private vlan support • Quality of Service • Diffserv, 802.1p (priority queues), DSCP, or TCP/UDP port based • Supports 4 levels of priority with flexible classification and prioritization • Per port bandwidth management • MultiLink Trunking (LACP) • 8 groups of up to 32 ports • Port Mirroring • IEEE 802.1x • L2/L3/L4 access control lists • TACACS+ client authentication • HTTPS and SSL • SSH (v1.5 and 2.0) for Telnet sessions • Static port security • Jumbo Frame support (on gigabit ports) • Dual firmware images • Multiple configuration files support • Support IGMP snooping v1/v2MANAGEMENT FEATURES • In-Band Management • Telnet, SLIP, Web-based HTTP, or SNMP manager • Out-of-Band Management • RS-232 DB-9 console port • Software Loading • TFTP in-band or Xmodem out-of-band • Event/ Error Log • SNTP • MIB Support • MIB II (RFC 1213), Bridging MIB (RFC 1493), Ethernet-Like MIB (RFC 2665), Bridge MIB Extensions (RFC 2764), RMON MIB (RFC 1757), RFC 2737, RFC 2742, RFC 2021, RFC 2863, RFC 2618, SMC's private MIB • Support IP address assignment • Support port mirroring • Support SNMP v1/v2c/v3* STANDARDS • IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet • IEEE802.1D Spanning Tree Protocol, IEEE802.3ab, IEEE802.3z Gigabit Ethernet and traffic priorities • IEEE802.1p Priority tags • IEEE802.1Q VLAN • IEEE802.1ac VLAN tagging • IEEE802.3ad Link aggregation control protocol • IEEE802.1w Rapid Spanning Tree • IEEE802.1v Protocol Based Vlans • EEE802.1s Multiple Spanning TreeRMON SUPPORT • Groups 1,2,3, 9 (Statistics, History, Alarm, Event)ISO • IEC8802.3COMPLIANCES • CE Mark • Emissions • FCC Class A • Industry Canada Class A • EN55022 (CISPR 22) Class A • EN 61000-3-2/3 • VCCI Class A • Immunity • EN 61000-4-2/3/4/5/6/8/11SAFETY • UL / CUL (UL 60950-1, CSA 22.2 NO60950-1) • CB (IEC60950-1) • CSA/CUS (CSA 22.2. NO 60950-1 & UL60950-1)WARRANTY • Please check www.smc.com for the warranty terms in your country/regionSLIDE-IN TRANSCEIVERS FOR COMBO PORTSSMC1GSFP-SX • 1G SX SFP Transceiver, 550M, Multimode fiberSMC1GSFP-LX • 1G LX SFP Transceiver, 10Km, Singlemode FiberSMC1GSFP-ZX • 1G LH SFP Transceiver, 70Km, Singlemode fiber
