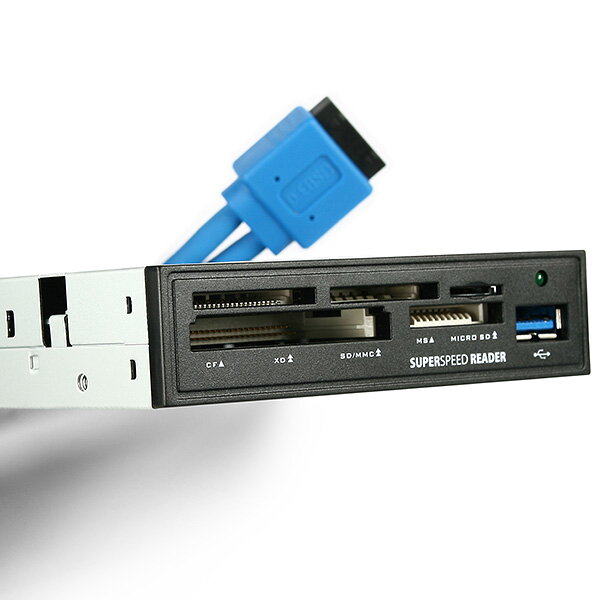

AXAGON CRI-S3 internal USB card reader

Input
interface USB 3.0 / USB 2.0 / USB 1.1
rate 5000 / 480 / 12 Mbit/s (super / high / full speed)
connector 2x USB Type A female (on the reader)
connector USB 3.0 internal 2x10 pin (on the cable)
cable 50 cm, disconnectable
card reader
number of slots 5
SD slot SD / SDHC / SDXC, MMC, MMC mobile, RS-MMC, with miniSD / miniSDHC / MMC Micro adapter
microSD slot microSD / microSDHC / microSDXC / TransFlash
MS slot MS, MS Pro, MS Duo, MS Magic Gate, MS Pro Duo Magic Gate, Memory Stick Pro HG Duo, with M2 / MS Micro adapter
CF slot CompactFlash Type I, CF Type II, CF Extreme III, CF Ultra II, Microdrive, Magicstor
XD slot xD Picture Card, xD Type M, xD Type M+, xD Type H, SmartMedia cards are not supported
Supported features
automatic installation yes
specification of SD flash cards SD 1.0 / SD 1.1 (SD - Secure Digital, up to 2 GB)
specification of SD flash cards SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)
specification of SD flash cards SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)
specification of MMC flash cards MMC 3.x, MMC 4.0/4.1, MMC 4.4 (8-bit)
specification of MS flash cards MS 1.43, MS Pro 1.05, MS Pro HG 1.03 (4-bit), MS XC 1.0 (up to 2TB)
specification of CF flash cards CF 5.0 (UDMA 0 - UDMA 6)
file formats FAT 12/16/32/64, NTFS, exFAT (FAT 64) and others
Plug and Play yes
Hot Plug yes
Hot Swap yes
Other features
indication green LED - correct card insertion (permanently on), data transmission (flashes)
number of icons 5 LUN - the reader appears as five drives in file managers
dimensions 101 x 96.5 x 24.7 mm (w x d x h)
weight 165 g (without USB cable)
Power supply
on the bus yes (USB bus power)
OS support
MS Windows 10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions)
MS Windows Server 2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions)
Mac OS X 10.x and higher
Linux kernel 2.6.x and higher
