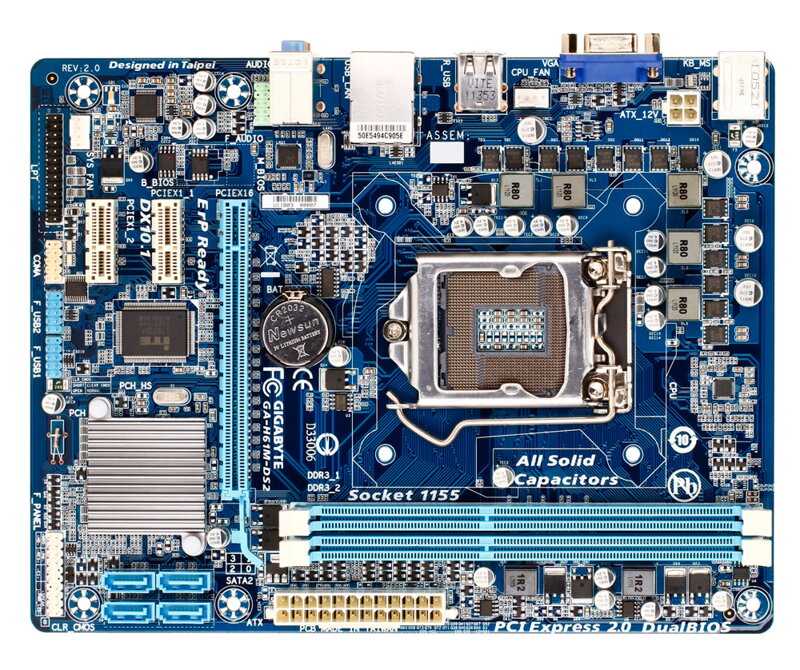

Gigabyte GA-H61M-DS2

CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
Intel® H61 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port
Audio
Realtek ALC887 audio codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Realtek 8111F chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset:
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB
Chipset:
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

+I/O shield krytka
