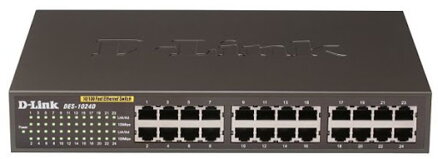

D-Link DES-1024D

SPECS
GENERAL
SubtypeFast Ethernet
Ports24 x 10/100
MAC Address Table Size8K entries
Status IndicatorsPower, 100M device connected, link/activity
ManufacturerD-Link
POWER DEVICE
Voltage RequiredAC 100/240 V
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Typeinternal power supply
NETWORKING
Cabling TypeEthernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size8K entries
Subcategorynetwork hubs and switches
SubtypeFast Ethernet
Form Factordesktop
Typeswitch
Connectivity Technologywired
Featuresauto-sensing per device, flow control
Compliant StandardsIEEE 802.1D, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports Qty24
Switching ProtocolEthernet
Communication Modefull-duplex, half-duplex
MISCELLANEOUS
LocalizationContinental Europe
INTERFACE PROVIDED
Qty24
ENVIRONMENTAL PARAMETERS
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating5 - 90%
HEADER
BrandD-Link
Product LineD-Link DES
Model1024D
Country KitsContinental Europe
Packaged Quantity1
CompatibilityPC
DIMENSIONS & WEIGHT
Width11 in
Depth7.1 in
Height1.7 in
Weight4.19 lbs
EXPANSION BAYS
Typenone
PORTS
Type10/100
Qty24
