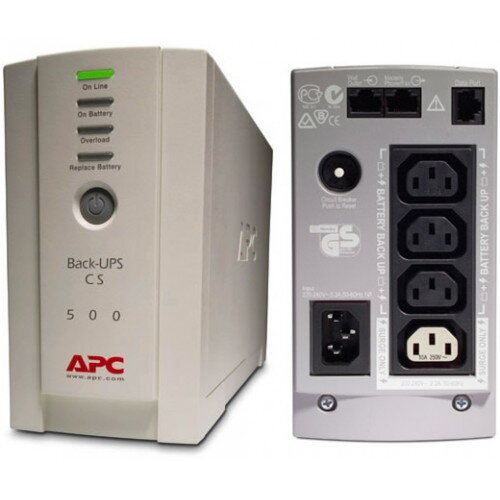

APC Back-UPS CS 500

Zlá batéria

Output

Output Power Capacity 300 Watts / 500 VA

Max Configurable Power 300 Watts / 500 VA

Nominal Output Voltage 230V

Output Frequency (sync to mains) 47 - 63 Hz

Topology Standby

Waveform Type Stepped approximation to a sinewave

Output Connections

(1) IEC 320 C13 (Surge Protection) IEC 320 C13

(3) IEC 320 C13 (Battery Backup) IEC 320 C13

(2) IEC Jumpers (Surge Protection)

Input

Nominal Input Voltage 230V

Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320-C14 inlet

Cord Length 1.83 meters

Input voltage range for main operations 180 - 266V

Input voltage adjustable range for mains operation 160 - 300V

Maximum Input Current 7A

Input Breaker Capacity 7 A

Batteries amp; Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 8 hour(s)

Replacement Battery RBC2, RBC2J

RBC⢠Quantity 1

Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph View Runtime Chart

Energy Use/Efficiency

Load Efficiency

25% 96.2%

50% 97.7%

75% 98.1%

100% 98.2%
Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph

Communications amp; Management

Interface Port(s) Optional Simple Signalling RS232 cable, USB

Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating 310 Joules

Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Physical

Maximum Height 165.00 mm

Maximum Width 91.00 mm

Maximum Depth 284.00 mm

Net Weight 6.32 KG

Shipping Weight 7.05 KG

Shipping Height 178.00 mm

Shipping Width 241.00 mm

Shipping Depth 368.00 mm

Master Carton Units 1.00

Color Beige

SCC Codes 107 31304 01635 6

Units per Pallet 48.00

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95%

Operating Elevation 0-3000 meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95%

Storage Elevation 0-15000 meters

Audible noise at 1 meter from surface of unit 40.00 dBA

Online Thermal Dissipation 24.00 BTU/hr
