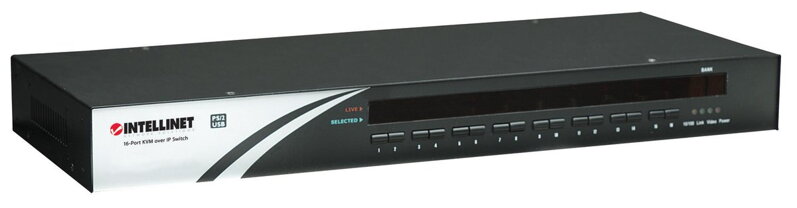

Intellinet 16-port KVM over IP Switch

Standards:
IEEE 802.1X (Network Access Control)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)

General
10/100 Mbps LAN port
Local console: 1 VGA and 2 PS/2 ports (1 mouse, 1 keyboard)
PC connection ports: 16 x HD15 female connections for use with 3-in-1 connection cables (375382, 375399)
RJ12 console management port
RJ12 serial control port
DC In connector
Protocols supported:
- SSH
- RADIUS
- HTTP
- HTTPS
- SNMP
Access via Win-32 viewer and Java viewer
Alert e-mail notification and SNMP trap messages for critical server events; e.g., "no video," "blue screen of death" and "NumLock test failure"
Certifications: FCC Class B

Security
1024-bit public key authentication using certificates generated by an external CA
256-bit SSL encryption for keyboard, mouse and video signal transmissions
Remote authentication support for SSL-secured LDAP or RADIUS servers
RADIUS accounting support
3 SSL security levels:
- No authentication/no encryption
- Server authentication/SSL encryption
- Server & client authentication/SSL encryption
3 SSL password security levels:
- No password
- 1 global password for all users
- Different password for each user

User Management
3 user levels: Superadmin, Admin, User
Local user database
Authentication to remote LDAP or RADIUS server
User groups with access rights to specific connected computers

Video
Supported resolutions:
- 640 x 480 @ 60 Hz / 72 Hz / 75 Hz / 85 Hz / 100 Hz
- 800 x 600 @ 60 Hz / 72 Hz / 75 Hz / 85 Hz / 100 Hz
- 1024 x 768 @ 60 Hz / 72 Hz / 75 Hz / 76 Hz / 85 Hz / 100 Hz
- 1152 x 864 @ 60 Hz / 70 Hz / 78 Hz
- 1280 x 1024 @ 60 Hz / 70 Hz
- 1600 x 1200 @ 60 Hz / 70 Hz
Color depth: 8 and 16 bit
Quality settings: 3
Video compression schemes: 4

LEDs
Link
10/100 Mbps
Power
Video
Selected (per port)
Live (per port)
Bank number

Environmental
Dimensions: 410 (W) x 165 (L) x 44.5 (H) mm (16 x 6.5 x 1.7 in.)
Weight: 3.6 kg (7.9 lbs.)
Operating temperature: 0 – 50°C (32 – 122°F)
Storage temperature: -20 – 60°C (-4 – 140°F)
Humidity: 0 – 90% RH, non-condensing

Power
External power adapter:
- Input: 110 - 240 V AC, 50/60 Hz
- Output: 9 V DC, 2.0 A

Package Contents
Digital KVM over IP switch
Console management cable
Modem serial cable
External power adapter
User manual
Quick installation guide
Software CD
19" rackmount brackets
