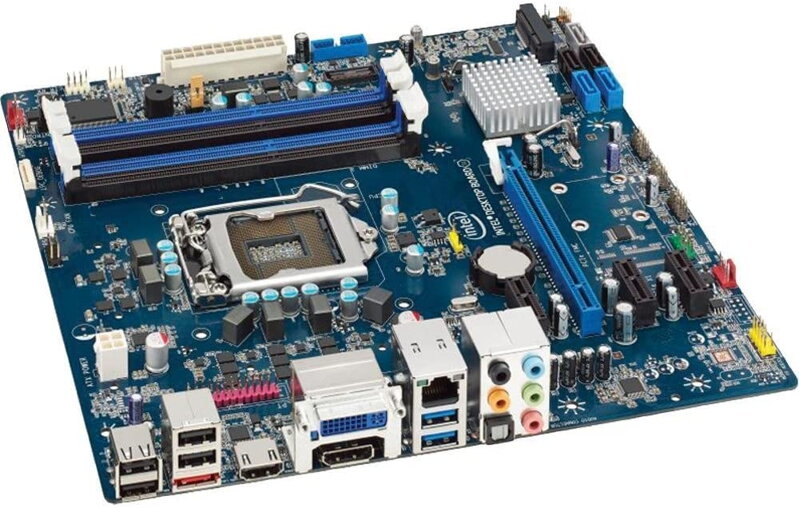

Intel DH77EB LGA-1155

Essentials
Product Collection
Intel® Desktop Boards with Intel® H77 Express Chipset

Status
Discontinued

Launch Date
Q2'12

Board Form Factor
Micro ATX

Socket
LGA1155

Extended Life Program (XLP)
No

Supplemental Information
Embedded Options Available
No

Datasheet
View now

Description
View now

Memory & Storage
Max Memory Size (dependent on memory type)
32 GB

Memory Types
Dual DDR3 1066/1333/1600

Max # of Memory Channels
2

Max # of DIMMs
4

Processor Graphics
Integrated Graphics ‡
Yes

Graphics Output
HDMI DP DVI-I

Intel® Clear Video Technology
Yes

# of Displays Supported ‡
2

Discrete Graphics
1 PCIe 3.0 x16

Requires a Processor with Intel Graphics Technology
Yes

Expansion Options
PCIe x1 Gen 2.x
3

PCIe x4 Gen 2.x
0

PCIe x8 Gen 2.x
0

PCIe x16 Gen 2.x
1

PCIe x1 Gen 1.x
0

PCIe x4 Gen 1.x
0

PCIe x8 Gen 1.x
0

PCIe x16 Gen 1.x
0

PCIe Mini Card Slot (Full Length)
1

I/O Specifications
# of USB Ports
14

USB 2.0 Configuration (External + Internal)
4,6

USB 3.0 Configuration (External + Internal)
2,2

Total # of SATA Ports
5

Max # of SATA 6.0 Gb/s Ports
2

# of eSATA Ports
1

RAID Configuration
0,1,5,10

# of PATA Ports
0

# of Parallel Ports
1

Parallel Port via Internal Header
Yes

# of Serial Ports
1

Serial Port via Internal Header
Yes

Audio (back channel + front channel)
8,2

Integrated LAN
10/100/1000

Consumer Infrared Rx Sensor
Yes

S/PDIF Out Connector
1

# of PS2 Ports
0

Package Specifications
Max CPU Configuration
1

Advanced Technologies
Intel® HD Audio Technology
Yes

Intel® Rapid Storage Technology
Yes
