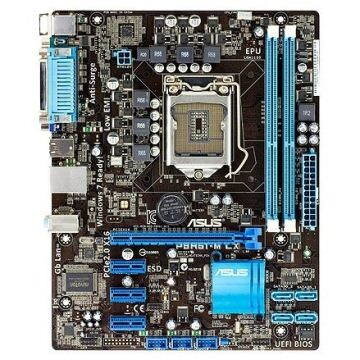

ASUS P8H61M-LX

SPECS
GENERAL
Chipset TypeIntel H61 Express
Compatible ProcessorsCore i5, Core i3, Core i7
Processor SocketLGA1155 Socket
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI
Storage InterfacesSATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 6
TypeDVI, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, TOSLINK, USB 2.0, VGA, audio line-in, audio line-out, microphone
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111E
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Product Typemotherboard
Included AccessoriesI/O back plate
AUDIO
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter (CPU required)
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size16 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111E
SUPPORTED RAM
Bus Clock1333 MHz, 1066 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC3-10600, PC3-8500
Max Size16 GB
TechnologyDDR3
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP8H61-M
Packaged Quantity1
CompatibilityPC
Revision3.0 B3
MAINBOARD
Form Factormicro ATX
Processor SocketLGA1155 Socket
Compatible ProcessorsCore i3, Core i5, Core i7
Chipset TypeIntel H61 Express
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz, 1333 MHz
Supported RAM StandardPC3-10600, PC3-8500
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0a support, ASUS EFI BIOS, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, Multilingual BIOS, SMBIOS 2.6 support, WfM 2.0 support
Hardware FeaturesASUS Anti-Surge Protection, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS Q-Fan, ASUS Stepless Frequency Selection (SFS), ASUS TurboV, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, GPU Boost, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, audio jack detect technology, jack retasking
INTERFACES
StorageSerial ATA-300
Storage Ports4 x SATA-300
USB / FireWire Ports Configuration (Active)6 x USB 2.0
CABLE DETAILS
TypeSerial ATA cable
Included Qty2
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 2.0 x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth8.4 in
SOFTWARE
Software IncludedASUS AI Suite II, ASUS Auto Tuning, drivers & utilities
SERVICE & SUPPORT
Type3 years warranty
STORAGE INTERFACES
InterfaceSerial ATA-300
Connector(s)4 x 7pin Serial ATA
Supported Devices Qty4
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period3 years
INTERNAL INTERFACES
TypeUSB 2.0

+I/O shield krytka
