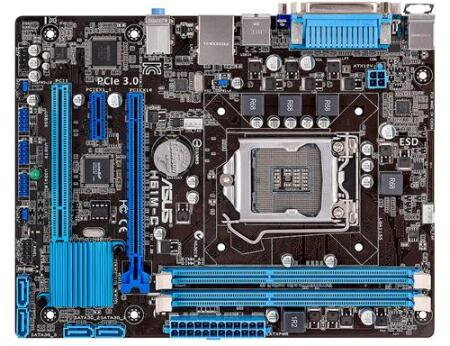

ASUS H61M-C

SPECS
GENERAL
Chipset TypeIntel H61 Express
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series
Processor SocketLGA1155 Socket
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe 3.0 x16
1 x PCIe 2.0 x1
1 x PCI
Storage InterfacesSATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces6 x USB 2.0 - header
1 x audio - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111F
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Max Allocated RAM Size1696 MB
MISCELLANEOUS
Product Typemotherboard
Included AccessoriesI/O back plate
AUDIO
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter (CPU required)
GRAPHICS
Max Allocated RAM Size1696 MB
AUDIO OUTPUT
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size16 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111F
SUPPORTED RAM
Bus Clock1600 MHz, 1333 MHz, 1066 MHz, 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.)
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture
Max Size16 GB
TechnologyDDR3
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelH61M-C
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA1155 Socket
Compatible ProcessorsCeleron, Core i3, Core i5, Core i7, Pentium, Xeon E3-1200 series
Chipset TypeIntel H61 Express
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz (O.C.), 2000 MHz (O.C.), 2133 MHz (O.C.), 2200 MHz (O.C.)
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS FeaturesACPI 2.0a support, ASUS EFI BIOS, ASUS EZ Flash 2, ASUS MyLogo2, ASUS Quiet Thermal Solution, DMI 2.0 support, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL)
Hardware FeaturesASUS Anti-Surge Protection, ASUS Boot Setting, ASUS EZ DIY, ASUS Fan Xpert, ASUS Fast Boot, ASUS Network iControl, Conductive Polymer Capacitors, CrashFree BIOS 3
INTERFACES
StorageSerial ATA-300
Storage Ports4 x SATA-300
USB / FireWire Ports Configuration (Active)4 x USB 2.0
CABLE DETAILS
TypeSerial ATA cable
Included Qty2
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 3.0 x16
DIMENSIONS & WEIGHT
Width8.9 in
Depth7 in
SOFTWARE
Software IncludedASUS AI Charger, ASUS AI Suite II, ASUS EZ Flash 2, ASUS MyLogo2, ASUS Update, drivers & utilities
VIDEO MEMORY
Max Allocated RAM Size1696 MB
STORAGE INTERFACES
InterfaceSerial ATA-300
Connector(s)4 x 7pin Serial ATA
Supported Devices Qty4
INTERNAL INTERFACES
TypeUSB 2.0, audio
Connector Typeheader
Qty1, 6
FEATURES
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, ASUS EFI BIOS, UEFI BIOS, SMBIOS 2.7 support
Hardware FeaturesASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, ASUS Fan Xpert, Conductive Polymer Capacitors, ASUS Network iControl, ASUS Boot Setting, ASUS Fast Boot
Sleep / Wake UpWake on LAN (WOL)
