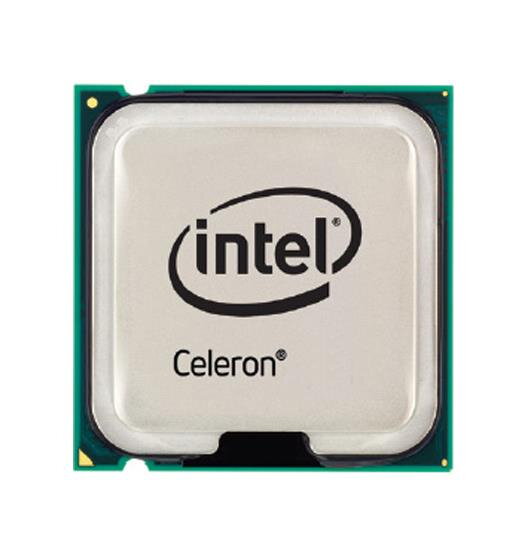

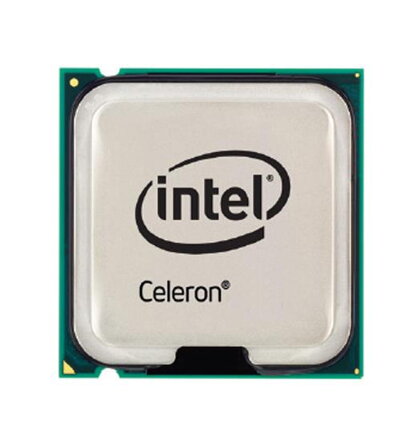

Intel Celeron G1840, LGA1150

Essentials
Product Collection
Intel® Celeron® Processor G Series

Code Name
Products formerly Haswell

Vertical Segment
Desktop

Processor Number
G1840

Status
Discontinued

Launch Date
Q2'14

Expected Discontinuance
07/14/2017

Lithography
22 nm

Recommended Customer Price
$42.00
CPU Specifications
Total Cores
2

Total Threads
2

Processor Base Frequency
2.80 GHz

Cache
2 MB

Bus Speed
5 GT/s

TDP
53 W

Supplemental Information
Embedded Options Available
No

Datasheet
View now

Memory Specifications
Max Memory Size (dependent on memory type)
32 GB

Memory Types
DDR3-1333, DDR3L-1333 @ 1.5V

Max # of Memory Channels
2

Max Memory Bandwidth
21.3 GB/s

ECC Memory Supported ‡
Yes

Processor Graphics
Processor Graphics ‡
Intel® HD Graphics for 4th Generation Intel® Processors

Graphics Base Frequency
350 MHz

Graphics Max Dynamic Frequency
1.05 GHz

Graphics Video Max Memory
1.7 GB

Graphics Output
eDP/DP/HDMI/DVI/VGA

Max Resolution (HDMI)‡
1920x1080@60Hz

Max Resolution (DP)‡
2560x1600@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡
2560x1600@60Hz

Max Resolution (VGA)‡
1920x1200@60Hz

DirectX* Support
11.1/12

OpenGL* Support
4.3

Intel® Quick Sync Video
Yes

Intel® Clear Video HD Technology
Yes

# of Displays Supported ‡
3

Expansion Options
Scalability
1S Only

PCI Express Revision
Up to 3.0

PCI Express Configurations ‡
Up to 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes
16

Package Specifications
Sockets Supported
FCLGA1150

Max CPU Configuration
1

Thermal Solution Specification
PCG 2013C

TCASE
72°C

Package Size
37.5mm x 37.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡
No

Intel® Turbo Boost Technology ‡
No

Intel vPro® Platform Eligibility ‡
No

Intel® Hyper-Threading Technology ‡
No

Intel® Virtualization Technology (VT-x) ‡
Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡
No

Intel® VT-x with Extended Page Tables (EPT) ‡
Yes

Intel® Transactional Synchronization Extensions
No

Intel® 64 ‡
Yes

Instruction Set
64-bit

Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2

Idle States
Yes

Enhanced Intel SpeedStep® Technology
Yes

Thermal Monitoring Technologies
Yes

Intel® Virtualization Technology for Itanium (VT-i)
No

Intel® Stable Image Platform Program (SIPP)
No

Security & Reliability
Intel® AES New Instructions
No

Secure Key
Yes

Intel® Trusted Execution Technology ‡
No

Execute Disable Bit ‡
Yes
