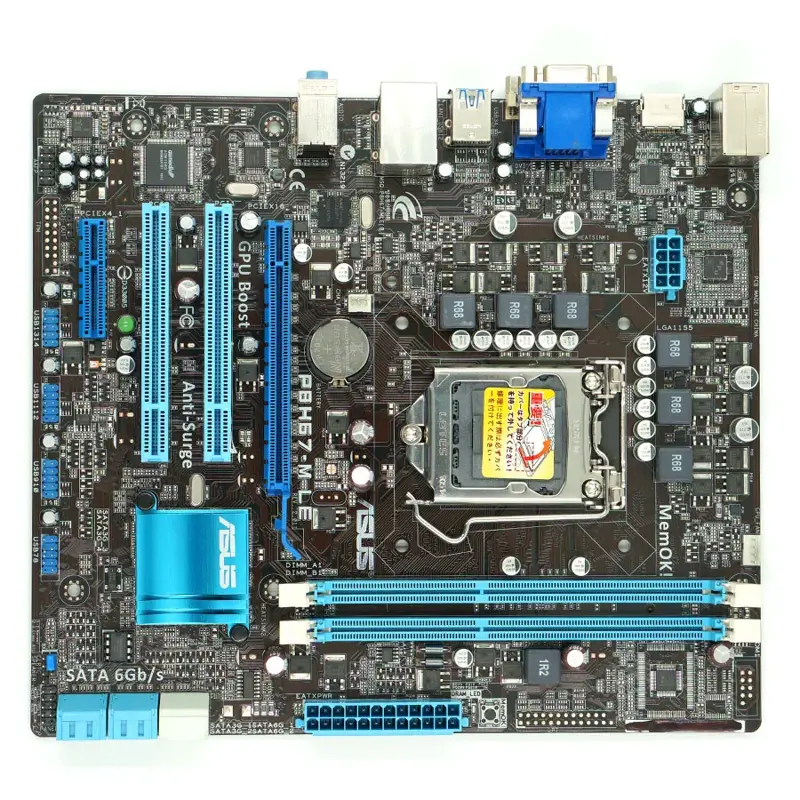

ASUS P8H67-M

Specifications for the product series
Product Code P8H67spacer
CPU Intel Socket 1155 for Intel 2nd and 3rd Generation Core i7 Processor/Core i5 Processor/Core i3 Processor
Support Intel 32nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for Intel CPU support list.
Chipset Intel H67(B3) Express Chipset
Memory 4 x DIMM, Max. 32 GB, DDR3 1333/1066 Non-ECC, Un-buffered Memory
Dual Channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
* According to Intel SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Please refer to www.asus.com or user manual for Memory QVL.
* When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 1 x PCIe 2.0 x16 (blue, single at x16 mode)
1 x PCIe 2.0 x16 (black, at x4 mode, compatible with PCIe x 1 and PCIe x 4)
2 x PCIe 2.0 x1
3 x PCI
* PCIe x1 slot shares the bandwidth with PCIe x16_2 slot.
* Due to CrossFireX limitation, DO NOT use the PCIe x1 slot when you install two CrossFireX graphics cards on both the PCIe x16 slots to set up a CrossFireX cofiguration.
* To disable the PCIe x1 slot, refer to the Onboard Devices Configuration section in the BIOS for details.
Multi-GPU Support Supports ATI Quad-GPU CrossFireX Technology
Storage Intel H67(B3) Express Chipset
4 xSATA 3.0 Gb/s ports
2 xSATA 6.0 Gb/s ports
Intel Rapid Storage technology Support RAID 0, 1, 5, 10
VIA VT6415 PATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices
LAN Realtek 8111E Gigabit LAN
Audio ALC887 8-Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
USB ASMedia USB 3.0 controller
- 2 x USB 3.0/2.0 ports (blue)
Intel H67(B3) Express Chipset
- 12 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at the back panel)
ASUS Unique Features ASUS Protect 3.0
- Anti-Surge protection
- LOW EMI
- ESD
- EPU
ASUS Hybrid Switches
- Turbo Key II
- MemOK!
ASUS Exclusive Features
- TurboV, Auto Tuning
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Stylish Heatsink Solution & MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS EFI BIOS
- ASUS AI Suite II
- ASUS CrashFree BIOS 3
- ASUS MyLogo 2
- ASUS EZ Flash 2
Overclocking Features Precision Tweaker
- vCore: Adjustable CPU voltage at 0.005V increment
- vCCIO: adjustable I/O voltage at 0.005V increment
- vDRAM Bus: 190-step DRAM voltage control
- vPCH: 190-step chipset voltage control
SFS (Stepless Frequency Selection)
- BCLK/PEG frequency tuning from 80MHz up to 300MHz at 0.1MHz increment.
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features 100% All High-quality Conductive Polymer Capacitors
Back Panel I/O Ports 1 x PS/2 Mouse (Green)
1 x PS/2 Keyboard (Purple)
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports
6 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
8 -Channel Audio I/O
Internal I/O Connectors 3 x USB connectors support additional 6 USB 2.0/1.1 ports
1 x MemOK! Button
1 x IDE connector
2 x SATA 6.0Gb/s ports
4 x SATA 3.0Gb/s ports
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF Out connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel
1 x Turbo Key II swith
BIOS 32 Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2 0a, Multi-language BIOS
Manageability WOL by PME, WOR by PME, PXE
Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA 6.0Gb/s cables
1 x Support DVD
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 8.7 inch ( 30.5 cm x 22.1 cm )
