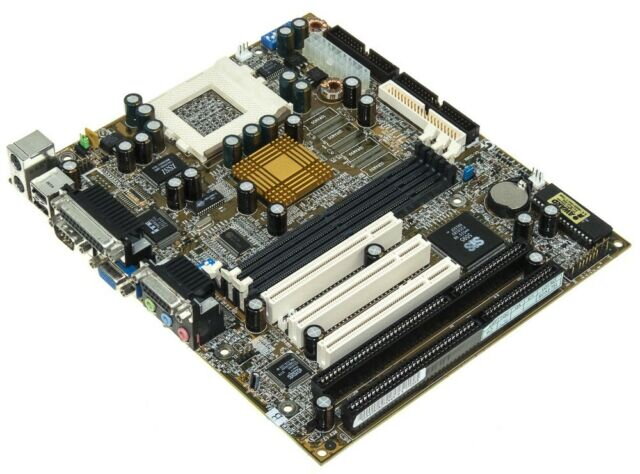

Gigabyte GA-5SMM Socket 7

The SiS 530 (Sindbad) with SiS 5595 southbridge supported Socket 7, SDRAM 1.5GB max., a bus frequency from 66 MHz to 124 MHz, and can have from 2 to 8 MiB shared memory for an integrated AGP SiS 6306 2D/3D graphics controller. Includes integrated UDMA66 IDE controller. Integrated SiS Video (chipset), Integrated Sound (ESS Solo 1)

CPU
Intel, AMD K6-3, IBM/Cyrix, IDT Processor 100~550 MHz
Socket 7 for future Processor support
66/75/83/90/95/100/105*/112*/124*/133* MHz System Bus
CPU Voltage 1.3V~3.5V
Clock multiplier 1.5/2.0 ...... / 5.5
Chipset
SiS 530 & 5595 AGPset
iTE 8661 I/Oset
Chipset with Built-in Enhanced Graphics Engine (share or 4/8 MB SDRAM)
ESS Solo-1 PCI Sound chip
Memory
8MB to 768MB DRAM size
3 x 3.3V DIMM Socket
Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM Module
Supports ECC Type DIMM Module (72 bits)
Expansion Slots
3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
2 x ISA Slot
I/O Controller
2 x Ultra DMA 33/66 Bus Master IDE ports on board
1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
2 x USB ports on board
1 x COM & 1 x PS/2 by cable (optional)
IrDA TX / RX Header (optional)
BIOS
2Mbit Flash RAM
AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS 120, ZIP & CD-ROM bootable
Form Factor
Micro ATX, 4 layer PCB (24.5*21.0 cm)
Driver
SiS Ultra DMA 33/66 Bus Master IDE Driver
SiS AGP GART VxD & Power Management Controller Driver
SiS Patch 95 & SiS 530 AGP Driver
SiS Windows 98 IRQ Routing Driver
ESS Solo-1 PCI Sound Driver
TREND MICRO PC-cillin 98 Anti-Virus Utility (scan only)
Other Features
Supports Wake On LAN Header (WOL)
Supports Internal/External modem Wake On
Poly fuse for keyboard overcurrent protection
Power
ATX Power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
Power-off by Windows 98 Shut down & Switch
Stop CPU Fan when entering suspend mode

+I/O shield krytka
