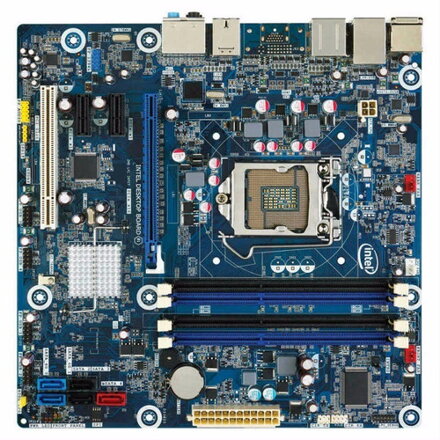

Intel Desktop Board DP67DE

Essentials
Product Collection
Legacy Intel® Desktop Boards

Code Name
Products formerly Deer Flat

Status
Discontinued

Launch Date
Q1'11

Board Form Factor
Micro ATX

Socket
LGA1155

Extended Life Program (XLP)
No

Supplemental Information
Embedded Options Available
No

Datasheet
View now

Memory & Storage
Max Memory Size (dependent on memory type)
32.23 GB

Memory Types
Dual DDR3 1066/1333

Max # of Memory Channels
2

Max # of DIMMs
4

Processor Graphics
Integrated Graphics ‡
No

Graphics Output
None

Discrete Graphics
1 PCIe 3.0 x16

Expansion Options
PCI Support
1

PCIe x1 Gen 2.x
2

PCIe x4 Gen 2.x
0

PCIe x8 Gen 2.x
0

PCIe x16 Gen 2.x
1

PCIe x1 Gen 1.x
0

PCIe x4 Gen 1.x
0

PCIe x8 Gen 1.x
0

PCIe x16 Gen 1.x
0

I/O Specifications
# of USB Ports
16

USB 2.0 Configuration (External + Internal)
6,8

USB 3.0 Configuration (External + Internal)
2,0

Total # of SATA Ports
5

Max # of SATA 6.0 Gb/s Ports
2

# of eSATA Ports
1

RAID Configuration
0,1,5,10

# of PATA Ports
0

# of Parallel Ports
0

Parallel Port via Internal Header
No

# of Serial Ports
0

Serial Port via Internal Header
No

Audio (back channel + front channel)
8,2

Integrated LAN
10/100/1000

Firewire
1,1

Consumer Infrared Rx Sensor
Yes

S/PDIF Out Connector
1

# of PS2 Ports
0

Package Specifications
Max CPU Configuration
1

Advanced Technologies
Intel® HD Audio Technology
Yes

Intel® Rapid Storage Technology
Yes

+I/O shield krytka
