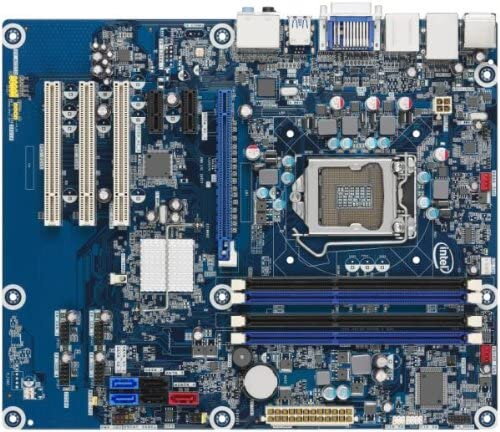

Intel® Desktop Board DH67CL

Essentials
Download Specifications
Product CollectionIntel® Desktop Boards with Intel® H67 Express Chipset
Code NameProducts formerly Cold Lake
StatusDiscontinued
Launch Date Q1'11
Board Form FactorATX
SocketLGA1155
Extended Life Program (XLP)No
Supplemental Information
Embedded Options Available No
Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types Dual DDR3 1066/1333
Max # of Memory Channels 2
Max # of DIMMs 4
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output HDMI DVI-I
Intel® Clear Video Technology Yes
# of Displays Supported ‡2
Discrete Graphics1 PCIe 3.0 x16
Requires a Processor with Intel Graphics TechnologyYes
Expansion Options
PCI Support 3
PCIe x1 Gen 2.x 2
PCIe x4 Gen 2.x 0
PCIe x8 Gen 2.x 0
PCIe x16 Gen 2.x 1
PCIe x1 Gen 1.x 0
PCIe x4 Gen 1.x 0
PCIe x8 Gen 1.x 0
PCIe x16 Gen 1.x 0
I/O Specifications
# of USB Ports16
USB 2.0 Configuration (External + Internal)6,8
USB 3.0 Configuration (External + Internal)2,0
Total # of SATA Ports 5
Max # of SATA 6.0 Gb/s Ports2
# of eSATA Ports1
RAID Configuration 0,1,5,10
# of PATA Ports 0
# of Parallel Ports 0
Parallel Port via Internal HeaderNo
# of Serial Ports 0
Serial Port via Internal HeaderNo
Audio (back channel + front channel)8,2
Integrated LAN 10/100/1000
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector1
# of PS2 Ports0
Package Specifications
Max CPU Configuration1
Advanced Technologies
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
