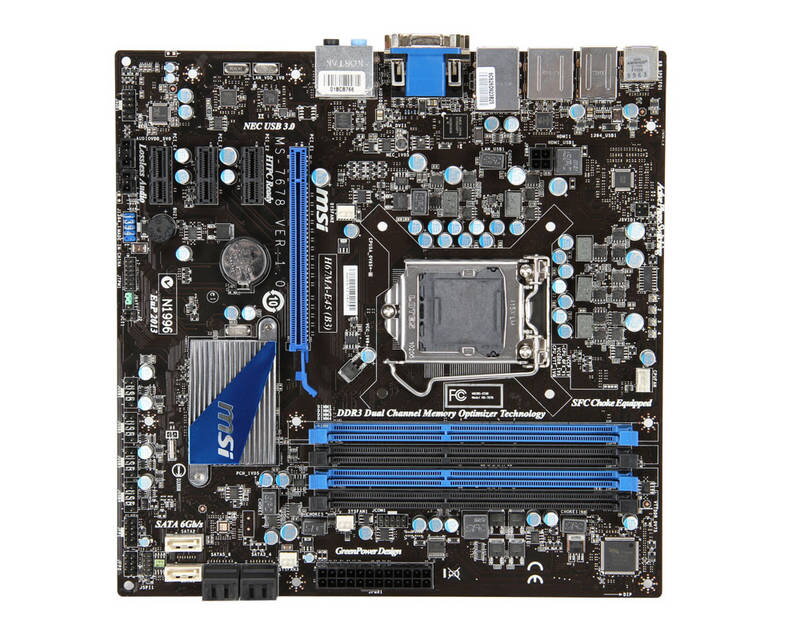

MSI H67MA-E45 (B3)

Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H67 (B3) Chipset

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333 DRAM, 32GB Max
- Supports 1GB/ 2GB/ 4GB/ 8GB DRAM size
- Supports Dual channel mode

Slots

• 1 PCI Express gen2 x16 slot
• 3 PCI Express gen2 x1 slots

On-Board SATA

• SATAII controller integrated in Intel® H67 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by H67 (B3) PCH

• SATAIII controller integrated in Intel® H67 (B3) chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H67 (B3) PCH
- SATA1~6 ports support RAID 0/1/5/10 mode

USB 3.0

• 2 USB 3.0 ports by NEC® uPD720200F1

Audio

• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

IEEE1394 / FireWire

• VIA® VT6315N chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 4 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 2 x Serial ATAIII connectors
- 1 x IEEE1394 connector
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x Serial port connector

Back Panel I/O Ports

- 1 x Optical SPDIF port
- 1 x PS/2 Mouse/Keyboard port
- 1 x IEEE1394 port
- 4 x USB 2.0 ports
- 1 x HDMI port
- 1 x RJ45 LAN Jack
- 2 x USB 3.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x 6 in 1 audio jack

MSI Reminds You...
• HDMI, VGA ports can only work with CPUs with GPUs core inside.

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 24.5cm(L) x 24.5cm(W) M-ATX Form Factor

Mounting

• 8 mounting holes.

+I/O shield krytka
