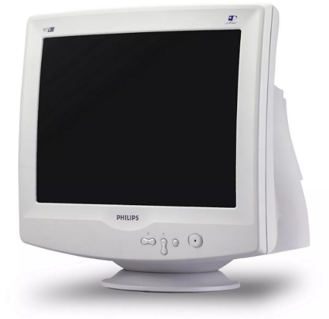

Philips 107S 10 (trieda B)

Škrabance na obrazovke

SPECS
GENERAL
Display TypeCRT monitor / CRT
Native Resolution1280 x 1024 at 60 Hz
Color Support16.7 million colors
Factory Preset Resolution Modes1280 x 1024 / 60 Hz
1024 x 768 / 85 Hz
1024 x 768 / 75 Hz
800 x 600 / 85 Hz
800 x 600 / 75 Hz
640 x 400 / 70 Hz
640 x 480 / 85 Hz
640 x 480 / 60 Hz
Controls & AdjustmentsColor temperature, power on/off, contrast, brightness, OSD-position
Dimensions (WxDxH)16.5 in x 17.8 in x 16.7 in
Color Temperature9300K, 6500K
Viewable Size15.9"
Pixel Pitch0.28 mm
Horizontal Refresh Rate70 kHz
On-Screen ControlsH/V-position, H/V-size, pincushion distortion, H/V-moiré, degauss, trapezoid, parallelogram, language select, OSD-position, recall settings, color temperature selection, zoom, rotation
Vertical Refresh Rate120 Hz
ManufacturerPhilips
CONNECTIVITY
Connections1 x display / video - VGA - 15 pin HD D-Sub (HD-15) - 1
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Power Consumption Operational80 Watt
CHASSIS
Built-in Devicesnone
POWER
Power Consumption Stand by / Sleep5 Watt
Power Supplyinternal
INTERFACE PROVIDED
Typenone
MISCELLANEOUS
Compliant StandardsPlug and Play, FCC Class B certified, MPR II, CSA, UL, TUV, TUV GS, DHHS, EPA Energy Star, ISO 9241, SEMKO, VCCI-II
Rack Mounting Kitnot available
Controls & Adjustmentscolor temperature
Colorwhite
Mounting Kitnot available
DISPLAY
Color Support24-bit (16.7 million colors)
Front Panel ControlsOSD-position, brightness, contrast, power on/off
On-Screen ControlsH/V-moiré, H/V-position, H/V-size, OSD-position, color temperature selection, degauss, language select, parallelogram, pincushion distortion, recall settings, rotation, trapezoid, zoom
TypeCRT monitor
SOFTWARE / SYSTEM REQUIREMENTS
Included SoftwareDrivers & Utilities
VIDEO INPUT
Analog Video SignalRGB
SYSTEM REQUIREMENTS
OS Requirednone
Image Typenon-interlaced
DIMENSIONS & WEIGHT
Width16.5 in
Depth17.8 in
Height16.7 in
Weight38.58 lbs
ENVIRONMENTAL PARAMETERS
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating5 - 95%
HEADER
BrandPhilips
Product LinePhilips Standard
Model107S
LocalizationEnglish, French, German, Italian, Spanish
Country KitsEurope
CompatibilityMac, PC
INTERFACE REQUIRED
Connector Type15 pin HD D-Sub (HD-15)
Genderfemale
Connector Qty1
PROJECTOR
Max V-Sync Rate120 Hz
Max H-Sync Rate70 KHz
