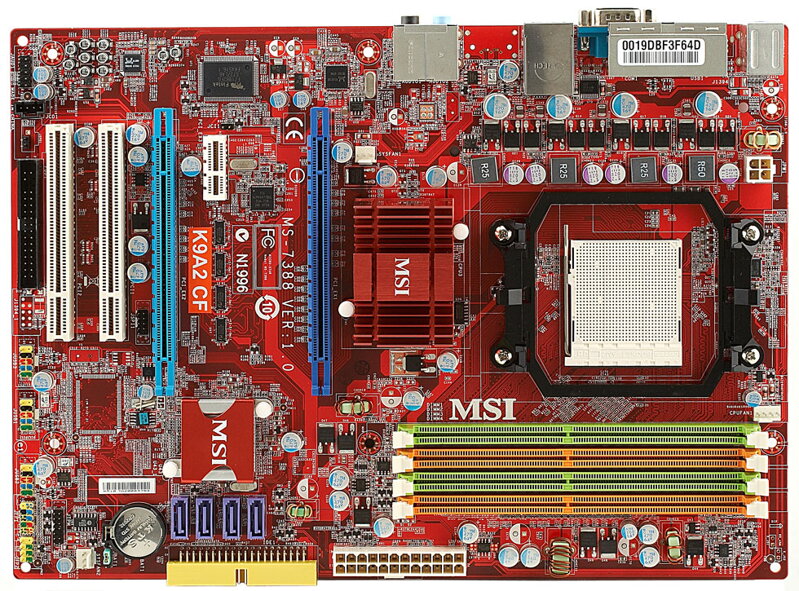

MSI K9A2 CF (MS-7388)

CPU

• AMD® Phenom/Athlon/Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s
- AM2 CPU supports HyperTransport 1.0/2.0
- AM2+ CPU supports HyperTransport 3.0

Chipset

• AMD® 790X and SB600 Chipset

Main Memory

• Supports Dual DDR2 533/667/800/1066(only for AM2+)
- 4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

• 1 mazarine PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
• 1 light-blue PCI Express x16 slot with x8 operation (PCI Express Bus SPEC V2.0 compliant)
• When 2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0 to x8/ x8. Do not use the light-blue slot when only one PCI Express x16 card is installed.
• 1 PCI Express x1 slots
• 2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

• One IDE port by AMD® SB600
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• 4 SATA II (1~4) ports by AMD® SB600
• 1 eSATA port by Silicon image® Sil3531 (optional)
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~4 support RAID 0, 1 and 0+1 mode by AMD® SB600
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Realtek PCI-E GbLAN controller 8111B
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

IEEE1394 / FireWire

• Chipset integrated by VIA® VT6308P
- Transfer rate is up to 400Mbps

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 HD connectors
- Clear CMOS jumper
- 1 x SPDIF-out header (optional, for HDMI™ graphic card only)
- 1 x IEEE1394 connector support additional 1 ports (optional)
- 1 x TPM module header (optional)

MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 keyboard

- 1 x PS/2 mouse
- 1 x Serial port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x eSATA port (optional)
- 1 x IEEE1394 Port (optional)

Dimension

• 30.5cm(L) x 22.0cm(W) ATX Form Factor

Mounting

• 6 mounting holes.
