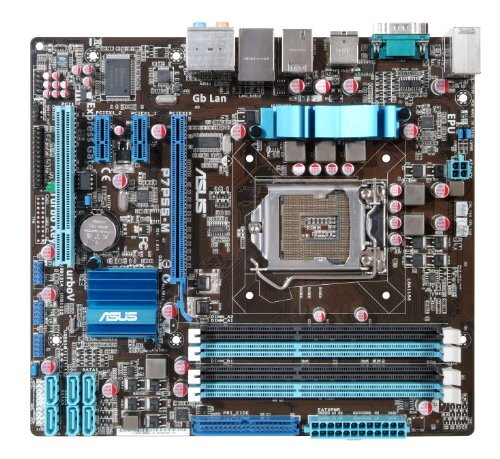

ASUS P7P55-M

Popis produktu:

CPU:
Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor Supports Intel® Turbo Boost Technology

Chipset:
Intel® P55 Express Chipset

Memory:
4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture

Expansion Slots:
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage:
Intel® P55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,0+1,5,10
VIA VT6415 PATA controller
1 x UltraDMA 133/100/66

LAN:
Realtek® 8112L Gigabit LAN controller featuring AI NET 2

Audio:
VIA® VT1708S 8-Channel High Definition Audio CODEC
- Optical S/PDIF out port at back I/O
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking

IEEE 1394:
JMB381 controller supports 1 x 1394a port(s)
USB 14 USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features ASUS Turbo Key
ASUS TurboV
ASUS EPU
ASUS Express Gate
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2

Overclocking Features:
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100MHz up to 160MHz at 1MHz increment
- Internal Base Clock tuning from 133MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports:
1 x PS/2 Keyboard/Mouse Combo port
1 x IEEE 1394a
1 x LAN(RJ45) port
8 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x LPT connector
1 x Front panel audio connector
1 x S/PDIF Out header
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel connector

BIOS:
16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Form Factor:
uATX Form Factor

+I/O shield krytka
