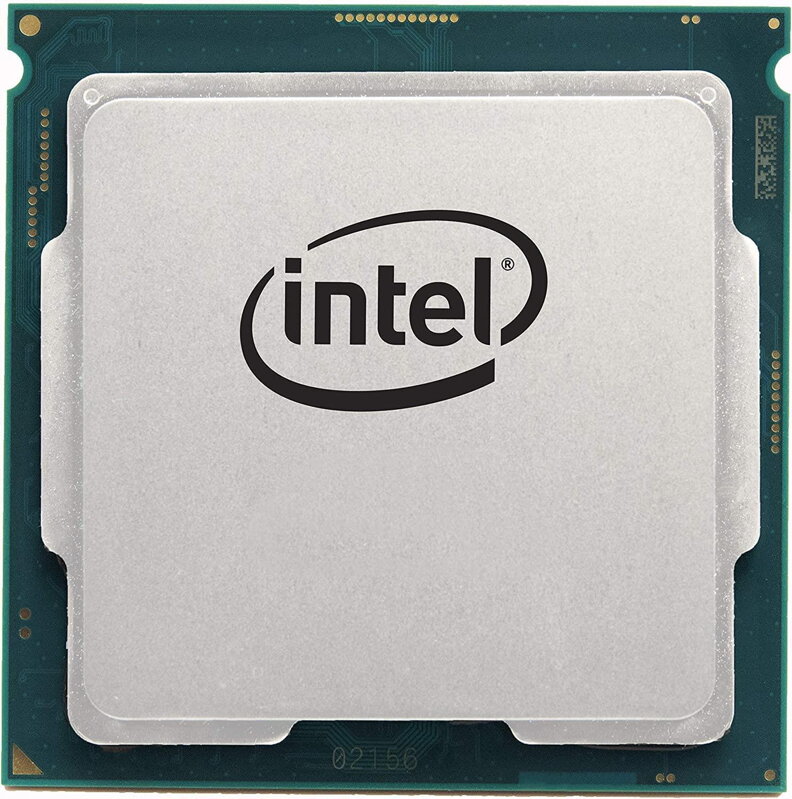

Intel Core i7-7700

Essentials
Download Specifications
Product Collection7th Generation Intel® Core™ i7 Processors
Code NameProducts formerly Kaby Lake
Vertical SegmentDesktop
Processor Number i7-7700
Lithography 14 nm
Recommended Customer Price $303.00
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
Total Threads 8
Max Turbo Frequency 4.20 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.20 GHz
Processor Base Frequency 3.60 GHz
Cache 8 MB Intel® Smart Cache
Bus Speed 8 GT/s
# of QPI Links 0
TDP 65 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q1'17
Servicing Status ESU Notification Issued
End of Servicing Updates Date Sunday, March 31, 2024
Embedded Options Available Yes
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
ECC Memory Supported ‡ No
GPU Specifications
GPU Name‡ Intel® HD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡3
Device ID0x5912
Expansion Options
Scalability1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration1
Thermal Solution Specification PCG 2015C (65W)
TJUNCTION 100°C
Package Size37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS GuardYes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Intel® Stable IT Platform Program (SIPP) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
