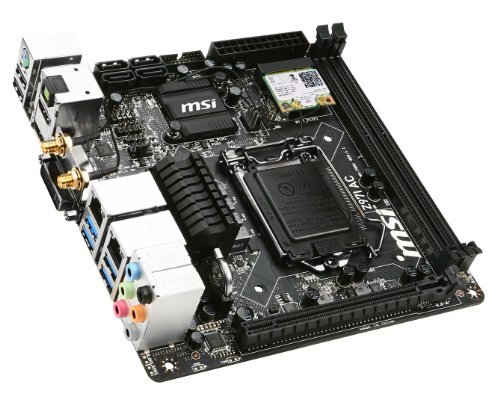

MSI Z97I AC

CPU

• Supports 4th and 5th Generation Intel® Core™ processors, and Intel Pentium and Celeron Processors for LGA 1150 socket

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® Z97 Express Chipset

Main Memory

• Support two DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000* (*OC) MHz . up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 3.0 x16 slot
- 1 x Half-size mini-PCIe slot*
* Intel Dual Band Wireless-AC 7260 Wi-Fi/Bluetooth card pre-installed.

On-Board SATA

• SATAIII controller integrated in Intel® Z97 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII ports (SATA1~4) by Z97
- Supports Intel Smart Response Technology* (optional)
- Supports Intel Rapid Start Technology and Intel Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8

• RAID
- SATA1~4 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z97

USB

• 6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• 4 x USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)

Audio

• Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

Wireless LAN (optional)

• Wi-Fi/Bluetooth mini-PCIe card with Intel® Dual Band Wireless-AC 7260 chip.
- Supports Wi-Fi 802.11 ac/a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Intel® Wireless Display (WiDi)

Bluetooth (optional)

• Wi-Fi/Bluetooth mini-PCIe card with Intel® Dual Band Wireless-AC 7260 chip.
- Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS)
* BLE: Bluetooth Low Energy

LAN

• 2 x Realtek® 8111G Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-Pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 4-pin CPU fan connectors
- 1 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 4 x Serial ATAIII connectors
- 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x Serial port connector
- 2 x System panel connectors
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 1 x Clear CMOS button
- 1 x GO2BIOS button
- 2 x USB 2.0 ports
- 4 x USB 3.0 ports
- 1 x Optical S/PDIF-out connector
- 2 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack
- 1 x DisplayPort with max. resolution of 4096x2160@24Hz, 24bpp/ 3840x2160@60Hz, 24bpp
- 1 x HDMI™® port with max. resolution up to 4096x2160@24Hz, 24bpp/2560x1600@60Hz, 24bpp/1920x1080@60Hz, 36bpp
- 1 x DVI-I port with max. resolution up to 1920x1200 @60Hz, 24bpp

This platform supports dual-display and triple-display function

HDMI™+DisplayPort

HDMI™+DVI

DVI+DisplayPort

HDMI™+DVI+DisplayPort

Extend mode
(Extend the desktop to the second and thired monitor)

◯

◯

◯

◯

Clone mode
(Monitors have the same screen)

◯

◯

◯

◯

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 6.7 in. x 6.7 in. (17 cm x 17 cm) Mini-ITX Form Factor

Mounting

• 4 mounting holes
