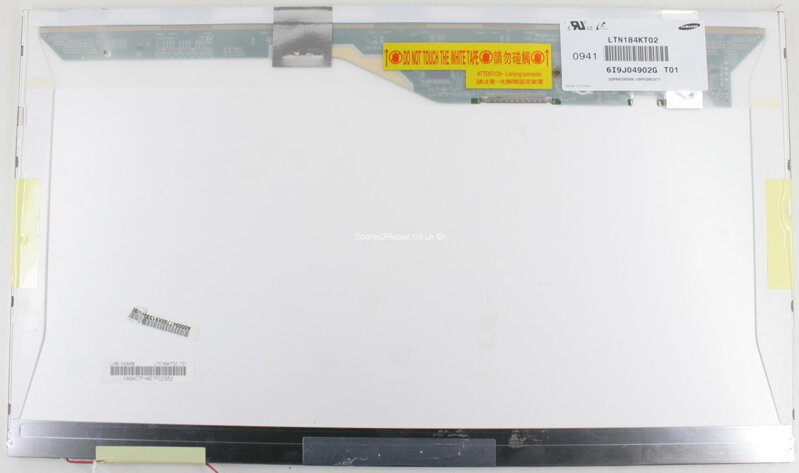

Samsung LTN184KT02

BrandSamsungModel P/NLTN184KT02-T01 Compatible Model 4 Compatible
Diagonal Size18.4"Panel Typea-Si TFT-LCD, LCM
Resolution1680(RGB)×945, HD+ 104PPI Pixel FormatRGB Vertical Stripe
Active Area408.24(W)×229.635(H) mmBezel Opening412.1(W)×232.5(H) mm
Outline Size422.5(W)×246(H) ×6.5(D) mmSurfaceGlare (Haze 0%), Hard coating (3H)
Brightness200 cd/m² (Typ.)Contrast Ratio600:1 (Typ.) (TM)
Viewing Angle45/45/15/30 (Typ.)(CR≥10) Left / Right / Up / DownDisplay ModeTN, Normally White, Transmissive
Best View on6 o'clockResponse Time16 (Typ.)(Tr+Td)
Display Colors262K 45% NTSCLamp Type1 pcs CCFL , 10K hours , Without Driver
Frequency60Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch ScreenWithout
Shape StyleWedge (PCBA Bent, T≥5.2mm)ApplicationLaptop
Signal InterfaceLVDS (2 ch, 6-bit) , 30 pins Connector
Input Voltage3.3V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
