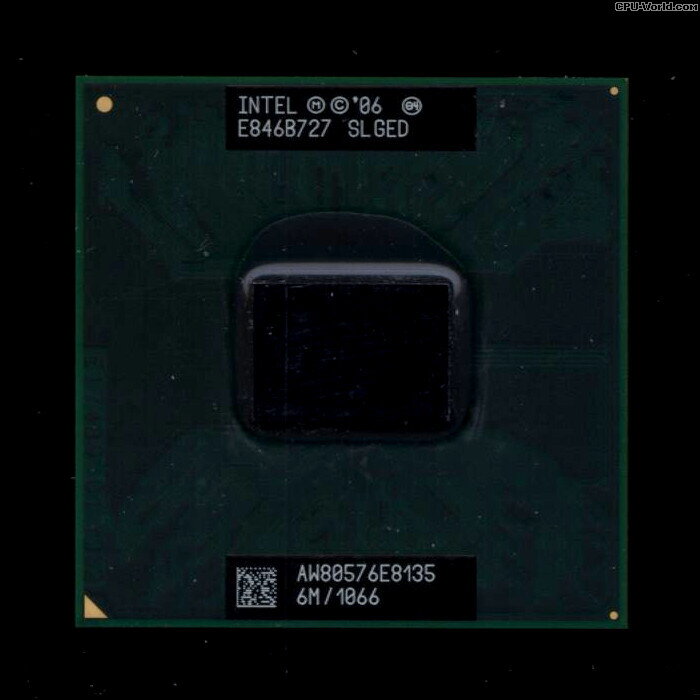

Intel Core 2 Duo Mobile E8135 SLGED

Part number: AW80576GH0676M
Measured Frequency: 2660 MHz
Comment: E849B182
Submitted by: xhoba

General information
Vendor: GenuineIntel
Processor name (BIOS): Intel(R) Core(TM)2 Duo CPU E8135 @ 2.66GHz
Cores: 2
Logical processors: 2
Processor type: Original OEM Processor
CPUID signature: 1067A
Family: 6 (06h)
Model: 23 (017h)
Stepping: 10 (0Ah)
TLB/Cache details: 64-byte Prefetching
Data TLB: 4-KB Pages, 4-way set associative, 256 entries
Data TLB: 4-MB Pages, 4-way set associative, 32 entries
Instruction TLB: 2-MB pages, 4-way, 8 entries or 4M pages, 4-way, 4 entries
Instruction TLB: 4-KB Pages, 4-way set associative, 128 entries
L1 Data TLB: 4-KB pages, 4-way set associative, 16 entries
L1 Data TLB: 4-MB pages, 4-way set associative, 16 entries

Cache details
Cache: L1 data L1 instruction L2
Size: 2 x 32 KB 2 x 32 KB 6 MB
Associativity: 8-way set
associative 8-way set
associative 24-way set
associative
Line size: 64 bytes 64 bytes 64 bytes
Comments: Direct-mapped Direct-mapped Non-inclusive
Direct-mapped
Shared between all cores

Supported instructions
Instruction set extensions Additional instructions
MMX CLFLUSH
SSE CMOV
SSE2 CMPXCHG16B
SSE3 CMPXCHG8B
SSSE3 FXSAVE/FXRSTORE
SSE4.1 MONITOR/MWAIT
SYSENTER/SYSEXIT
XSAVE/XRESTORE states
XSETBV/XGETBV are enabled

Integrated features and technologies
Major features Other features
On-chip Floating Point Unit 36-bit page-size extensions
64-bit / Intel 64 64-bit debug store
NX bit/XD-bit Advanced programmable interrupt controller
Intel Virtualization CPL qualified debug store
Enhanced SpeedStep Debug store
Debugging extensions
Digital Thermal Sensor capability
LAHF/SAHF support in 64-bit mode
Machine check architecture
Machine check exception
Memory-type range registers
Model-specific registers
Page attribute table
Page global extension
Page-size extensions (4MB pages)
Pending break enable
Perfmon and Debug capability
Physical address extensions
Self-snoop
Thermal monitor
Thermal monitor 2
Thermal monitor and software controlled clock facilities
Time stamp counter
Virtual 8086-mode enhancements
xTPR Update Control
