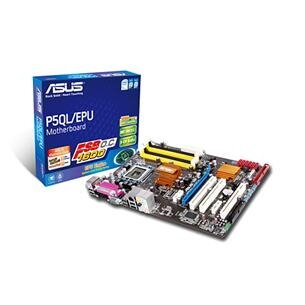

ASUS P5QL/EPU

V krabici

CPU:
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core / Celeron® Processors
Chipset Intel® P43 / ICH10

Front Side Bus:
1600(O.C)/1333/1066/800 MHz

Memory:
4 x DIMM, Max. 16 GB, DDR2 1066(O.C.)/800/667 Memory
Dual Channel memory architecture

Expansion Slots:
1 x PCIe x16
2 x PCIe x1
3 x PCI

Storage:
Southbridge
6 xSATA 3 Gb/s ports
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices

LAN:
Realtek 8111C, PCIe Gigabit LAN controller featuring AI NET 2

Audio:
VIA VT1708S 8 -Channel High-Definition Audio CODEC

USB:
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features:
- ASUS EPU Lite

Overclocking Features:
Precision Tweaker
SFS (Stepless Frequency Selection)
Overclocking Protection

Back Panel I/O Ports:
1 x Parallel
1 x PS/2 Keyboard
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out Header
Front panel audio connector
Chassis Intrusion connector
System Panel
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector

BIOS:
8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Accessories:
User's manual
1 x UltraDMA 133/100/66 cable
1 x SATA cable
I/O Shield

Support:
Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor:
ATX Form Factor
12 inch x 8 inch ( 30.5 cm x 20.4 cm )
