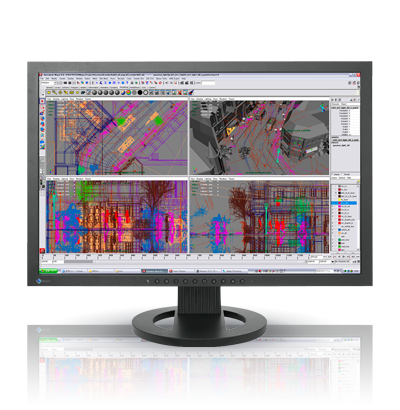

EIZO FlexScan SX2262W

Cabinet Color Black
Panel
Type VA
Size 22" / 56 cm (558 mm diagonal)
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 473.8 x 296.1 mm
Pixel Pitch 0.247 x 0.247 mm
Grayscale Tones DisplayPort: 1024 tones (a palette of 65281 tones)
DVI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 280 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 6 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 95% / 92% vs. NTSC
Video Signals
Input Terminals DVI-I 29 pin x 2 (with HDCP), DisplayPort (with HDCP)
Digital Scanning Frequency (H / V) 31 - 76 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 76 kHz, 49 - 86 Hz
Sync Formats Separate, Composite
USB
Function 1 port for monitor control
2-port USB hub
Standard USB 2.0
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 90 W
Typical Power Consumption 45 W
Power Save Mode Less than 0.9 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes Color Mode (Text, Picture, Movie, sRGB, User1, User2, User3)
Auto EcoView / BrightRegulator Yes
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Adjustment (Clock, Phase, Position, Range (Auto)), Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Contrast, Independent 6-Color Control, Gamma, Temperature, Saturation, Hue, Gain, Contrast and Outline Enhancer, Reset), Signal Switching, Product Information, OSD Menu Settings, Auto Sharpness, Mode Preset, Adjustment Lock, DDC/CI Lock, Power Indicator, All Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 511 x 347.5 - 521.5 x 240.5 - 256 mm
Dimensions (Without Stand, W x H x D) 511 x 333 x 85 mm
Net Weight 9.6 kg / 23.6 lbs
Net Weight (Without Stand) 6.6 kg / 14.6 lbs
Height Adjustment Range 174 mm
Tilt 30° Up, 0° Down
Swivel 172° Right, 172° Left
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) CUDO certified mark, TCO'03, TUV/Ergonomics (including ISO 9241-307 [Pixel fault class I]), TUV/GS, c-Tick, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, GOST-R
