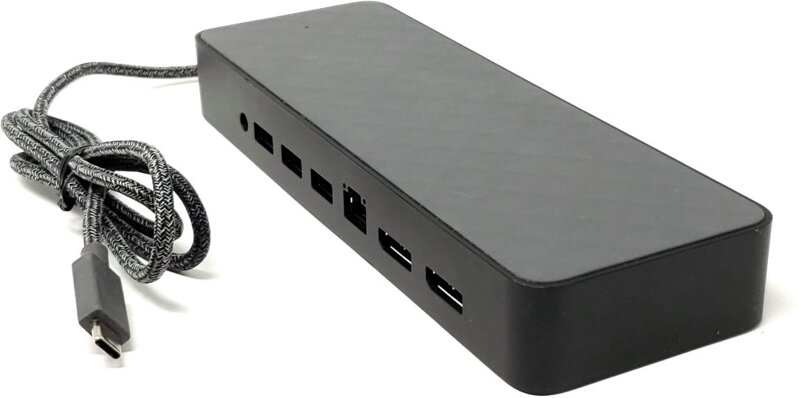

HP USB-C Universal Dock Non-flash Version HSA-B005DS

Part number 3DV65AA
Model number HSA-B005DS
Dimensions 7.87 x 2.76 x 1.1 in (200 x 70 x 28 mm)
Weight 0.77 lb (0.350 kg)
Resolution Single display: up to 5120 x 2880 @ 60Hz,
Dual display: up to 3840 x 2160 @ 60Hz
Front components One powered USB 3.0 port , One USB-C port (data), Combo Audio Jack
Rear components Two DisplayPort ports, Gigabit Ethernet port, Three USB 2.0 ports, AC adapter power connector
Adapter compatibility Adapter is only compatible with the HP USB-C Universal Dock
Side components Kensington lock slot , USB-C cable that connects to computers1
Network manageability features PXE Boot, Wake on Lan (from the Off, Sleep or Hibernation states4
)
MAC Address Pass Through (from the On, Off, Sleep or Hibernation states6
)
WLAN – LAN switching6
Power delivery (PD) profile USB-C PD 3.0 supporting 5V/3A, 9V/3A, 10V/3A, 12/3A, 15V/3A, 20V/3A
Operating systems Windows 7 and above, Windows10 S8 , Chrome
Normal operation voltage 19.5V
Average operation power 77W
Max operation power 88W
Temperature (operation) 32~104 °F (0~40 °C)
Temperature (non-operation) -4~140 °F (-20~+60 °C)
Relative humidity (operation) 5%~90% RH, non-condensing
Relative humidity (non-operation) 5%~95% RH, non-condensing
Altitude (operation) 10000 ft (3048 m)
Altitude (non-operation) 30000 ft (9144 m)
Shock (operation) 40G, 2ms, half-sine
Shock (non-operation) 240G, 2ms, half-sine
Random vibration (operation) ~0.21Grms, 5~500 Hz
Random vibration (non-operation) ~2.09Grms, 5-500 Hz, Non-Operating
