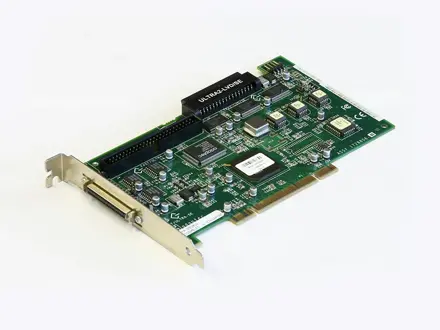

Adaptec AHA-2930U2

Number of devices
Up to 15
Bus System Interface Type

32-bit PCI Local Bus
External Connectors
50-pin high-density (Ultra and Fast SCSI devices)
Internal Connectors
50-pin standard (Ultra and Fast SCSI devices)68-pin high-density (Ultra2 SCSI devices)
Data Transfer Rate
80 MB/sec
System Requirements
IBM-compatible 200 MHz or faster processorWindows NT, Windows 98, Windows 98SE, Windows 95, Windows 2000, Windows XP or Windows MEPCI expansion slotSCSI peripheralCD-ROM drive
Package Contents
AHA®-2930U2 PCI-to-Ultra2 SCSI host adapterAdaptec EZ-SCSI software68-pin Ultra2 internal SCSI cable with terminator50-pin internal SCSI cableComplete documentationFive year warranty card
Warranty
5 years
Supported Protocols

Ultra2 SCSI, Wide UltraSCSI,
UltraSCSI, Fast Wide SCSI,
Fast SCSI, SCSI-2, SCSI-1

Peripheral Support

Bootable and non-bootable

Interface Transfer Method

Bus Master DMA

Board Dimensions

6.7" x 3.87"

MTBF (mean time between failures, Bellcore)

Bu440, 452 hrs
