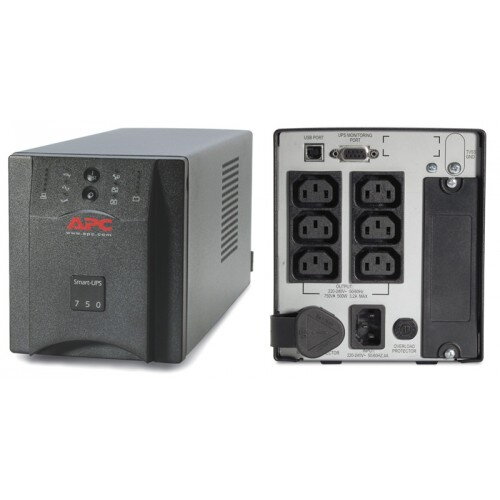

APC Smart-UPS 750VA USB Serial 120V

Output

Output Power Capacity 500 Watts / 750 VA

Max Configurable Power 500 Watts / 750 VA

Nominal Output Voltage 120V

Output Voltage Distortion Less than 5% at full load

Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology Line Interactive

Waveform Type Sine wave

Output Connections

(6) NEMA 5-15R NEMA 5-15R

Input

Nominal Input Voltage 120V

Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

NEMA 5-15P NEMA 5-15P

Cord Length 1.83 meters

Input voltage range for main operations 82 - 144V

Input voltage adjustable range for mains operation 75 - 154V

Batteries amp; Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 3 hour(s)

Replacement Battery RBC48

RBC⢠Quantity 1

Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph View Runtime Chart

Energy Use/Efficiency

Load Efficiency

25% 89.4%

50% 94.1%

75% 95.6%

100% 96.3%
Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

View Enlarged Graph

Communications amp; Management

Interface Port(s) DB-9 RS-232, Smart-Slot, USB

Available SmartSlot⢠Interface Quantity 1

Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) Optional

Surge Protection and Filtering

Surge energy rating 540 Joules

Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 157.00 mm

Maximum Width 137.00 mm

Maximum Depth 358.00 mm

Net Weight 13.18 KG

Shipping Weight 14.55 KG

Shipping Height 290.00 mm

Shipping Width 270.00 mm

Shipping Depth 500.00 mm

Color Black

Units per Pallet 24.00

Environmental

Operating Environment 0 - 40 °C

Operating Relative Humidity 0 - 95%

Operating Elevation 0-3000 meters

Storage Temperature -15 - 45 °C

Storage Relative Humidity 0 - 95%

Storage Elevation 0-15000 meters

Audible noise at 1 meter from surface of unit 40.00 dBA

Online Thermal Dissipation 90.00 BTU/hr

Conformance

Regulatory Approvals BSMI, CSA, FCC Part 15 Class A, UL 1778, UL Listed, VCCI

Standard Warranty 2 years repair or replace

Sustainable Offer Status

RoHS Compliant

REACH REACH: Contains No SVHCs

Other Environmental Compliance China RoHS
