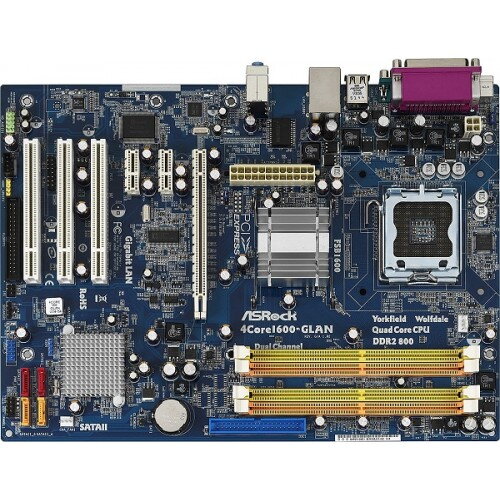

ASRock 4Core1600-GLAN LGA 775

LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
Intel® P31/G31 + ICH7 Chipsets
Compatible with all FSB 1600/1333/1066/800MHz CPUs
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
Dual Channel DDR2 800/667 (4 x DIMM slots) with max. capacity up to 4GB
1 x PCI Express x16 slot
Supports PCIE Gigabit LAN 10/100/1000 Mb/s
4 x SATA2 3.0 Gb/s connectors
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
1 x WiFi/E header
Supports ASRock Instant Boot
Windows® Vista™ Premium 2008 Logo Ready
Product Specifications
General
CPU
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

- Compatible with all FSB1600*/1333/1066/800MHz CPUs

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

*In overclocking mode.
Chipset
- Northbridge: Intel® P31/G31

- Southbridge: Intel® ICH7
Memory
- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDR2 800/667 non-ECC, un-buffered memory

- Max. capacity of system memory: 4GB**

*Before you install memory module on this motherboard, please read below message to avoid any improper installation:



» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.

» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.



For the detailed installation information, please refer to the user manual or quick installation guide.



**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- n/a
Audio
- 5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111B/RTL8111C

- Supports Wake-On-LAN

- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots
Connector
- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 3 USB 2.0 ports)

- 1 x WiFi/E header
Rear Panel I/O
ASRock 6CH I/O Pro

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- Instant Boot

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 100 Cables

- 1 x SATA Data Cable

- 1 x SATA 1 to 1 Power Cable

- 1 x HDMI_SPDIF Cable
Hardware Monitor
- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant
Certifications
- FCC, CE, WHQL
