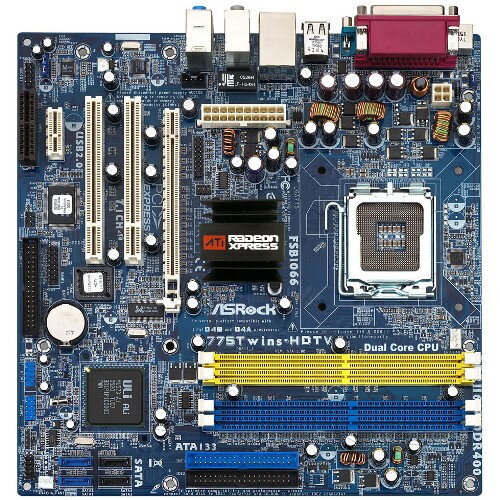

ASRock 775Twins-HDTV

LGA 775 for Intel® Dual Core Pentium® XE and Pentium® D / Pentium® 4 / Celeron® D processorATI™Radeon Xpress 200ULi® 1573 ChipsetFree Bundle VGA_HDTV panel with VGA and 3 RCA-type component video output, that allows PC to connect to all high-definition TV with component video input capabilitySupports FSB1066/800/533MHz processor, EM64T CPU and H-T TechnologySupports DDR2 667 and DDR400 (DDR2 and DDR are supported separately)DirectX 9.0 on board VGA, Pixel Shader 2.0, Max. shared memory 128MBIntegrated ATI X300-based 2D/3D graphicsHybrid Booster - Safe Overclocking TechnologyPCI Express x16 slotPCI Express x1 slot4 ports of SATA 1.5Gb/s, support RAID 0, 1, JBOD, 2 ATA133 IDE ports7.1 Channel Superior Quality Audio, 10/100 Ethernet LANFree Bundle: 1 x VGA_HDTV panelASRock 8CH I/O: 4 ready-to-use USB Ports, 7.1 channel audio jackThis model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
Awards
2005/11/15 PC3 - ValueASRock 775Twins-HDTV received Value award from PC3!Product Specifications GeneralCPU- LGA 775 for Intel® Dual Core Pentium® XE and Pentium® D / Pentium® 4 / Celeron® D processor- FSB 1066/800/533 MHz- Supports EM64T CPU- Supports Hyper-Threading Technology- Supports Untied Overclocking TechnologyChipset- Northbridge: ATI™ Radeon Xpress 200- Southbridge: Uli 1573Memory- 2 x DDR DIMM slots- Supports DDR400/333/266 non-ECC, un-buffered memory- Max. capacity of system memory: 4GB*- 2 x DDR2 DIMM slots- Supports DDR2 667/533 non-ECC, un-buffered memory- Max. capacity of system memory: 4GB*
*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® XP 64-bit.
**DDR2 and DDR are supported separatelyBIOS- 4Mb AMI BIOS- AMI Legal BIOS- Supports "Plug and Play"- ACPI 1.1 Compliance Wake Up Events- Supports Jumperfree- SMBIOS 2.3.1 Support Audio, Video and NetworkingGraphics- Integrated ATI X300-based 2D/3D graphics- DirectX 9.0- Pixel Shader 2.0- Max. shared memory 128MBAudio- Realtek ALC850 7.1 channel AC'97 audio codecLAN- Realtek PHY RTL8201CL- Speed: 10/100 Ethernet- Supports Wake-On-LAN- Supports PXE Expansion / ConnectivitySlots- 2 x PCI slots- 1 x PCI Express x16 slot- 1 x PCI Express x1 slot- 1 x AMR slotConnector- 4 x SATA 1.5 Gb/s connectors (Support RAID 0, 1, 0+1, JBOD) (No support for Hot Plug function)- 2 x ATA133 IDE connectors (support 4 x IDE devices)- 1 x Floppy connector- CPU/Chassis FAN connectors- 20 pin ATX power connector- 4 pin 12V power connector- CD in header- Front panel audio connector- 2 x USB 2.0 headers (support 4 USB 2.0 ports)Rear Panel I/OASRock 8CH I/O- 1 x PS/2 Mouse Port- 1 x PS/2 Keyboard Port- 1 x Serial Port: COM1- 1 x Parallel Port (ECP/EPP support)- 4 x Ready-to-Use USB 2.0 Ports- 1 x RJ-45 LAN Port- Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / MiscellaneousUnique FeatureHybrid Booster:- CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)Support CD- Drivers, Utilities, AntiVirus SoftwareAccessories- Quick Installation Guide, Support CD, I/O shield- Floppy/ATA 133 Cables- 1 x SATA Data Cable - 1 x SATA 1-to-1 Power Cable - 1 x AMR card- 1 x VGA_HDTV panel- 1 x VGA_2x8 Cable- 1 x AV/S_2x3 CableForm Factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cmOS- Microsoft® Windows® 2000 / XP / XP 64-bit compliantCertifications- FCC, CE, WHQL
