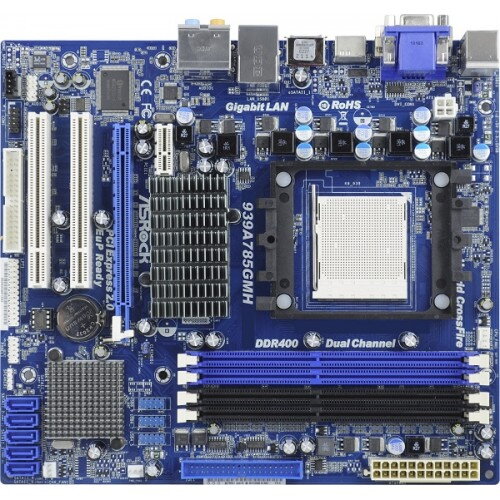

ASRock 939A785GMH socket 939 základna doska

Product Specifications GeneralCPU- Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors- Supports AMD's Cool 'n' Quiet Technology- FSB 1000 MHz (2.0 GT/s)- Supports Untied Overclocking Technology- Supports Hyper-Transport TechnologyChipset- Northbridge: AMD 785G- Southbridge: AMD SB710Memory- Dual Channel DDR memory technology- 4 x DDR DIMM slots- Supports DDR 400/333/266 non-ECC, un-buffered memory- Max. capacity of system memory: 4GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS- 8Mb AMI Legal BIOS- Supports "Plug and Play"- ACPI 1.1 Compliance Wake Up Events- Supports jumperfree- SMBIOS 2.3.1 Support- VCCM, NB Voltage Multi-adjustment Audio, Video and NetworkingGraphics- Integrated AMD Radeon HD 4200 graphics- DX10.1 class iGPU, Shader Model 4.1- Max. shared memory 512MB- Three graphics output options: D-Sub, DVI-D and HDMI- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz- Supports HDCP function with DVI and HDMI ports- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI portsAudio- 7.1 CH HD Audio (Realtek ALC888 Audio Codec)LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111DL- Supports Wake-On-LAN- Supports PXE Expansion / ConnectivitySlots- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)- 1 x PCI Express 2.0 x1 slot- 2 x PCI slots- Supports AMD Hybrid CrossFireX™Connector- 5 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions- 1 x ATA133 IDE connector (supports 2 x IDE devices)- 1 x Floppy connector- 1 x IR header- 1 x COM port header- 1 x Print port header- CPU/Chassis/Power FAN connector- 24 pin ATX power connector- 4 pin 12V power connector- CD in header- Front panel audio connector- 3 x USB 2.0 headers (support 6 USB 2.0 ports)Rear Panel I/OI/O Panel- 1 x PS/2 Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 4 x Ready-to-Use USB 2.0 Ports- 1 x eSATA2 Port- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / MiscellaneousUnique Feature- ASRock OC Tuner- ASRock Intelligent Energy Saver- ASRock Instant Boot- ASRock Instant Flash- ASRock OC DNA- ASRock APP Charger- Hybrid Booster:- CPU Frequency Stepless Control- ASRock U-COP- Boot Failure Guard (B.F.G.)Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 TrialAccessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data CablesHardware Monitor- CPU Temperature Sensing- Chassis Temperature Sensing- CPU/Chassis/Power Fan Tachometer- CPU Quiet Fan- Voltage Monitoring: +12V, +5V, +3.3V, VcoreForm Factor- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm- Solid Capacitor for CPU PowerOS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliantCertifications- FCC, CE, WHQL- ErP/EuP Ready (ErP/EuP ready power supply is required)
