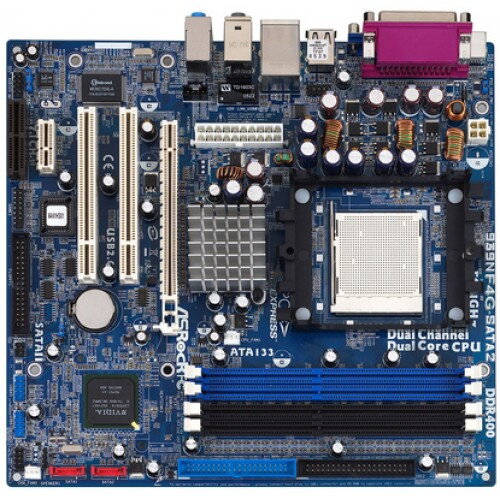

ASRock 939NF4G-SATA2

Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors

NVIDIA® GeForce 6100 chipset

NVIDIA® nForce 410 MCP chipset

Supports FSB 1000MHz (2.0GT/s), Hyper-Transport Technology and AMD Cool 'n' Quiet Technology

Integrated NV44 graphics DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 128MB

Supports Dual Channel DDR400, 4 DIMMs slots

Hybrid Booster - ASRock Safe Overclocking Technology

PCI Express x16 slot for VGA interface

PCI Express x1 slot

2 ports of SATA2 3.0Gb/s, RAID 0, 1, JBOD, 2 ATA133 IDE ports

7.1 Channel Superior Quality Audio, 10/100 Ethernet LAN

ASRock 8CH I/O: 4 ready-to-use USB 2.0 ports, 7.1 channel audio jack
Product Specifications

General

CPU - Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors

- Supports AMD's Cool 'n' Quiet Technology

- FSB 1 GHz (2.0 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport Technology

Chipset - Northbridge: NVIDIA® GeForce 6100

- Southbridge: NVIDIA® nForce 410 MCP

Memory - Dual Channel DDR memory technology

- 4 x DDR DIMM slots

- Supports DDR400/333/266 non-ECC, un-buffered memory

- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP. For Windows® XP 64-bit with 64-bit CPU, there is no such limitation.

BIOS - 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.3.1 Support

Audio, Video and Networking

Graphics - Integrated NV44 graphics DX9.0 VGA

- Pixel Shader 3.0

- Max. shared memory 128MB

Audio - Realtek ALC850 7.1 channel AC'97 audio codec

LAN - Realtek PHY RTL8201CL

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Expansion / Connectivity

Slots - 2 x PCI slots

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 1 x AMR slot

Connector - 2 x SATA2 3.0 Gb/s connectors, support RAID 0, 1, JBOD (No support for Hot Plug function)

- 2 x ATA133 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O ASRock 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature Hybrid Booster:

- CPU Frequency Stepless Control

- CPU Voltage

- CPU Multiplier

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Support CD - Drivers, Utilities, AntiVirus Software

Accessories - Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable

- 1 x SATA 1 to 1 Power Cable

- 1 x COM Port Bracket

Hardware Monitor - CPU Temperature Sensing

- Motherboard Temperature Sensing

- CPU Overheat Shutdown to Protect CPU Life

- CPU Fan Tachometer

- Chassis Fan Tachometer

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor - Micro ATX Form Factor: 9.6-in x 8.8-in, 24.4 cm x 22.4 cm

OS - Microsoft® Windows® 2000 / XP / XP 64-bit compliant

Certifications - FCC, CE, MS WHQ
