Popis

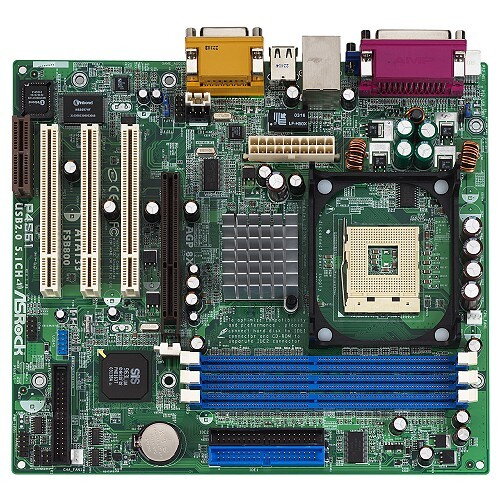

Socket 478 for Intel® P4 processor
SiS® 661FX chipset
FSB 800/533/400MHz
DDR 400/333/266, 3x DDR slots
Support Hyper-Threading Technology
Integrated Real 256E 3D graphics, AGP8X/4X 1.5V
Hybrid Booster - safe overclocking
ASROCK I/O - default 4 ready-to-use USB 2.0 ports on rear panel, default Game/MIDI port.
5.1 Channel 3D audio.
default 10/100 Ethernet LAN.
Multi-languages Quick Installation Guide.
Bundle CD includes Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..
Product Specifications
General
CPU
- Socket Socket 478, for Intel® Pentium® 4/Celeron
- Std.: FSB 800/533/400 MHz
Chipset
- SiS® 661FX+963L
- Supports Hyper-Threading Technology
Memory
- DDR400/333/266 non-ECC, un-buffered memory
- 3 x DDR slots
- Max. capacity of system memory: 3GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Audio, Video and Networking
Graphics
- Int. Real 256E 3D Graphics
- Max. 64MB shared memory
Audio
- AC97 CODEC
- 5.1 Channel Audio
LAN
- 802.3u, 10/100 Ethernet LAN, WOL supported
- Supports PXE
Expansion / Connectivity
Slots
- 1x AGP8X/4X v1.5
- 3x PCI slots, PCI 2.2
- 1x AMR( shared w/PCI 3)
Connector
- IDE 2 x ATA 133/100/66/33
- Floppy 1 connector
- SIR/CIR 1/0
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- CD/AUX/ audio in (on audio model only)
- Front panel audio connector (on audio model only)
Rear Panel I/O
ASROCK I/O
- Keyboard PS2 x1
- Mouse PS2 x1
- USB2.0: 4 ports default on rear panel + 2 ports upgrade via header
- Serial - 1 COM Port Bracket
- 1x Parallel
- 1x Game/MIDI
- 1x RJ45 LAN
- Audio I/O Line In/Line Out/Mic.
- VGA x 1
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- AGP/PCI frequency control
Support CD
- Drivers
- Bundle CD includes: Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..
Accessories
- Quick Installation Guide
- Support CD
- Floppy/ATA 100 Cables
- 1x COM Port Bracket
Form Factor
- Micro ATX
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
SiS® 661FX chipset
FSB 800/533/400MHz
DDR 400/333/266, 3x DDR slots
Support Hyper-Threading Technology
Integrated Real 256E 3D graphics, AGP8X/4X 1.5V
Hybrid Booster - safe overclocking
ASROCK I/O - default 4 ready-to-use USB 2.0 ports on rear panel, default Game/MIDI port.
5.1 Channel 3D audio.
default 10/100 Ethernet LAN.
Multi-languages Quick Installation Guide.
Bundle CD includes Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..
Product Specifications
General
CPU
- Socket Socket 478, for Intel® Pentium® 4/Celeron
- Std.: FSB 800/533/400 MHz
Chipset
- SiS® 661FX+963L
- Supports Hyper-Threading Technology
Memory
- DDR400/333/266 non-ECC, un-buffered memory
- 3 x DDR slots
- Max. capacity of system memory: 3GB
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Audio, Video and Networking
Graphics
- Int. Real 256E 3D Graphics
- Max. 64MB shared memory
Audio
- AC97 CODEC
- 5.1 Channel Audio
LAN
- 802.3u, 10/100 Ethernet LAN, WOL supported
- Supports PXE
Expansion / Connectivity
Slots
- 1x AGP8X/4X v1.5
- 3x PCI slots, PCI 2.2
- 1x AMR( shared w/PCI 3)
Connector
- IDE 2 x ATA 133/100/66/33
- Floppy 1 connector
- SIR/CIR 1/0
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- CD/AUX/ audio in (on audio model only)
- Front panel audio connector (on audio model only)
Rear Panel I/O
ASROCK I/O
- Keyboard PS2 x1
- Mouse PS2 x1
- USB2.0: 4 ports default on rear panel + 2 ports upgrade via header
- Serial - 1 COM Port Bracket
- 1x Parallel
- 1x Game/MIDI
- 1x RJ45 LAN
- Audio I/O Line In/Line Out/Mic.
- VGA x 1
Other Features / Miscellaneous
Unique Feature
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- AGP/PCI frequency control
Support CD
- Drivers
- Bundle CD includes: Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..
Accessories
- Quick Installation Guide
- Support CD
- Floppy/ATA 100 Cables
- 1x COM Port Bracket
Form Factor
- Micro ATX
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
