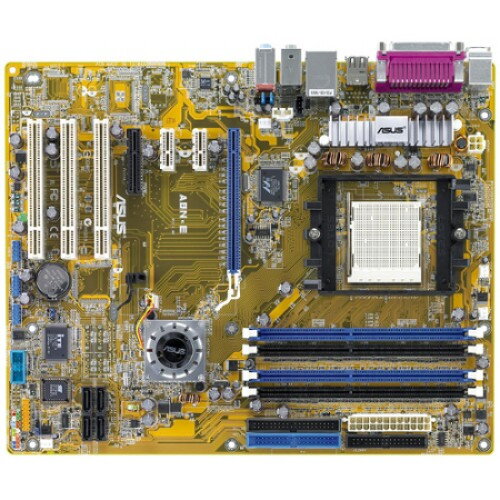

ASUS A8N-E socket 939 NVIDIA nForce4 Ultra ATX AMD

Supported CPU

CPU Socket Type

939

CPU Type

Athlon 64 X2 / Athlon 64 FX / Athlon 64

FSB

1000MHz Hyper Transport (2000 MT/s)
Chipsets

Chipset

NVIDIA nForce4 Ultra
Memory

Number of Memory Slots

4×184pin

Memory Standard

DDR 400

Maximum Memory Supported

4GB

Channel Supported

Dual Channel
Expansion Slots

PCI Express x16

1

PCI Express x4

1

PCI Express x1

2

PCI Slots

3
Storage Devices

PATA

2 x ATA100 4 Dev. Max

PATA RAID

NV RAID 0/1/0+1 JBOD

SATA 3Gb/s

4

SATA RAID

NV RAID 0/1/0+1 JBOD
Onboard Video

Onboard Video Chipset

None
Onboard Audio

Audio Chipset

Realtek ALC850

Audio Channels

8 Channels
Onboard LAN

Max LAN Speed

10/100/1000Mbps
Rear Panel Ports

PS/2

2

LPT

1

USB 1.1/2.0

4 x USB 2.0

S/PDIF Out

1 x Optical, 1 x Coaxial

Audio Ports

6 Ports
Internal I/O Connectors

Onboard USB

3 x USB 2.0 connectors support 6 ports
Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin
