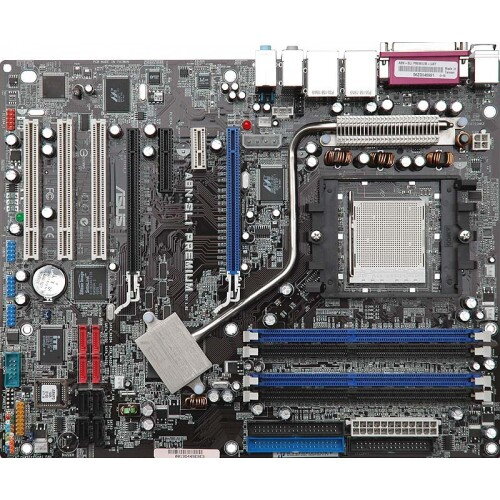

Asus A8n-sli premium

Model
Brand
ASUS
Model
A8N-SLI Premium
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
FSB
1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge
NVIDIA nForce4 SLI
Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
2 x PCI-Express x16

SLI mode: x8, x8

Default (single VGA): x16, x1
PCI Express x4
1
PCI Express x1
1
PCI Slots
3
Storage Devices
PATA
2 x ATA100 4 Dev. Max
PATA RAID
NV RAID 0/1/0+1 JBOD
SATA 1.5 Gb/s
4
SATA 3Gb/s
4
SATA RAID
NV RAID 0/1/0+1/5 JBOD
Additional RAID Controller
Silicon Image 3114R RAID Controller
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC850
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
Dual 10/100/1000Mbps
Rear Panel Ports
PS/2
2
LPT
1
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
24 Pin
