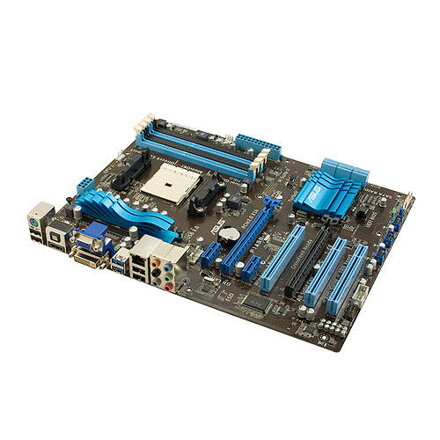

ASUS F1A55-V

Multi-GPU CrossFireX Support!

UEFI BIOS - EZ Mode - Flexible amp; Easy BIOS Interface

MemOK! – Any memory is A-OK!

ASUS TurboV - Easy, Real-Time O.C. Tunings

AI Suite II - One-stop Access to Innovative ASUS Features
CPU

AMD Socket FM1 A- Series/E2- Series Accelerated Processors

Supports CPU up to 4 cores

Supports AMD® Turbo Core 2.0 Technology

* The AMD® Turbo Core 2.0 Technology Support depends on the APU types

Chipset

AMD A55 FCH (Hudson D2)

Memory

4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.

* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Graphic

Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU

Multi-VGA output support : HDMI/DVI/RGB ports *1

- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz

- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz

AMD® Dual Graphics technology support *2

Supports DirectX 11

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16 (blue)

1 x PCIe 2.0 x16 (x4 mode, black)

2 x PCIe 2.0 x1

3 x PCI

Storage

AMD A55 FCH (Hudson D2) chipset :

6 x SATA 3Gb/s port(s), blue

Support Raid 0, 1, 10, JBOD

LAN

Realtek®, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

- Optical S/PDIF out port(s) at back panel

USB Ports

AMD A55 FCH (Hudson D2) chipset :

10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

ASMedia® USB 3.0 controller :

2 x USB 3.0 port(s) (2 at back panel, blue)

ROG Exclusive Features

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS EPU :

- EPU

TurboV

ASUS Exclusive Features :

- MemOK!

- AI Suite II

- Ai Charger+

- Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS MyLogo 2

- Multi-language BIOS

100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.0

4 x USB 2.0

1 x Optical S/PDIF out

6 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x COM port(s) connector(s)

6 x SATA 3Gb/s connector(s)

1 x CPU Fan connector(s) (4 -pin)

2 x Chassis Fan connector(s) (4 -pin)

1 x Power Fan connector(s) (3 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x MemOK! button(s)

Accessories

User's manual

I/O Shield

2 x SATA 3Gb/s cable(s)

BIOS

32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a

Support Disc

Drivers

ASUS utilities

ASUS Update

Anti-virus software (OEM version)

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1: HDMI and DVI-D cannot work simultaneously.

*2: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology.
