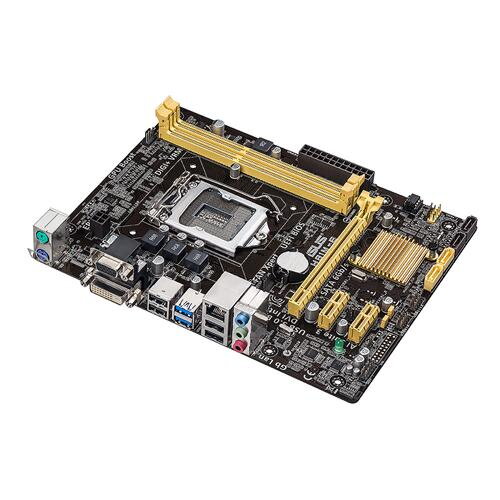

ASUS H81M-E

CPUIntel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support listChipsetIntel® H81Memory2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.GraphicIntegrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MBSupports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Expansion Slots1 x PCIe x16 2 x PCIe 2.0 x1StorageIntel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow2 x SATA 3Gb/s port(s), dark brownSupports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1LANRealtek® 8111G, 1 x Gigabit LAN Controller(s)AudioRealtek® ALC887 8-Channel High Definition Audio CODEC *2- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retaskingUSB PortsIntel® H81 chipset : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue)Intel® H81 chipset : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)Special FeaturesASUS 5X Protection :- ASUS DIGI+ VRM - 3 Phase digital power design- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU :- EPU ASUS Exclusive Features :- GPU Boost- AI Suite 3- Ai Charger- Anti-Surge- Low EMI Solution- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl- USB 3.0 Boost- Disk UnlockerASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design :- ASUS Q-SlotOperating System SupportWindows® 8.1 Windows® 8 Windows® 7Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.0 (blue)4 x USB 2.0 3 x Audio jack(s)Internal I/O Ports2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA 6Gb/s connector(s)2 x SATA 3Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x Clear CMOS jumper(s)AccessoriesUser's manualI/O Shield2 x SATA 6Gb/s cable(s)BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory informationManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXESupport DiscDriversASUS UtilitiesEZ Update Anti-Virus Software (OEM Version)Form FactoruATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )Note*1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.*1-2:These functions will work depending on the CPU installed.*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
