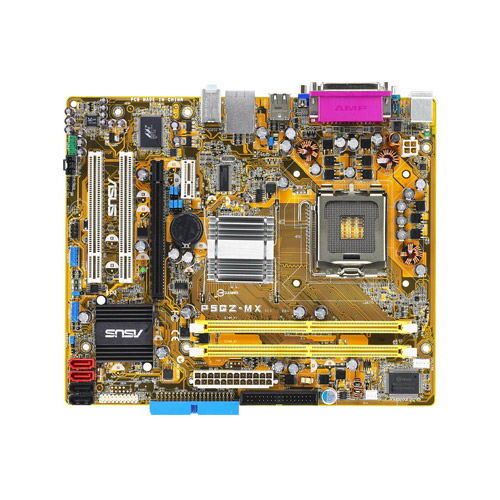

ASUS P5GZ-MX

CPUIntel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron Processors Compatible with Intel® 05B/05A/06 processorsIntel® Hyper-Threading Technology ready* Refer to www.asus.com for Intel CPU support listChipsetIntel 945GZ ICH7
Front Side Bus800/533/ MHzMemory2 x DIMM, Max. 2 GB, DDR2 533/400/ Non-ECC,Un-buffered Memory Dual Channel memory architecture*Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)Expansion Slots1 x PCIe x16 @ x4 speed1 x PCIe x1 2 x PCI 2.2 VGADiscrete Intel Graphics Media Accelerator 950Supports RGB with max. resolution 2048 x 1536 @75Hz
Max. Vertical Refresh Rate 1920x1440 @85Hz StorageSouthbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s portsLANMarvell 88E8001 PCI Gigabit/ LAN controller support AI NET2AudioRealtek ALC883, 6 -Channel High-Definition Audio CODECUSB8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)Special FeaturesASUS MyLogo ASUS EZ Flash ASUS CrashFree BIOS 2 ASUS AI NET 2 ASUS C.P.R.(CPU Parameter Recall)ASUS Q-Fan Back Panel I/O Ports1 x Parallel 1 x VGA 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Serial port 1 x LAN(RJ45) port 4 x USB 2.0/1.1 6 -Channel Audio I/O Internal I/O Connectors2 x USB connectors support additional 4 USB ports1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x S/PDIF Out connector 1 x4-pin ATX 12V Power connector 24 -pin ATX Power connector Front panel audio connectorChassis Intrusion connectorCD/AUX audio inSystem Panel ConnectorBIOS4 Mb Flash ROM DMI 2.0AMI BIOS PnPWfM 2.0SM BIOS 2.3ManageabilityWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE,AccessoriesUser's manualx UltraDMA 133/100/66 cables x Floppy disk drive cables x SATA cables SATA power cables I/O ShieldSupport DiscDriversASUS PC Probe IIAnti-virus software (OEM version)ASUS UpdateForm FactoruATX Form Factor 9.6inchx8.inch ( 24.5cm x20.3cm )
