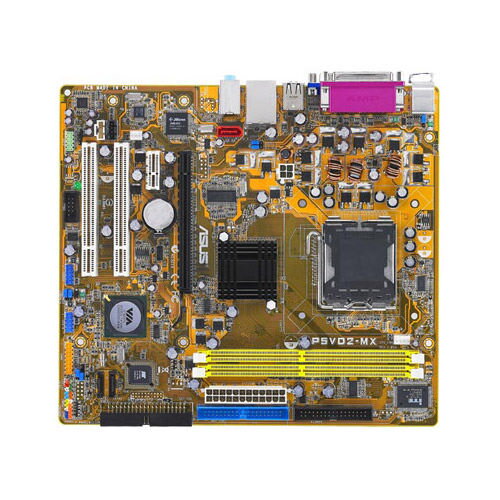

ASUS P5VD2-MX

CPULGA775 socket for Intel Pentium D/Pentium 4/CeleronSupport Intel® Presler 65nm Dual core and Core™2 Duo CPUCompatible with Intel 05B/05A and 04B/04A processorsSupport Intel EM64T/EIST/C1E/TM2/Hyper-Threading TechnologyChipsetVIA P4M890VIA VT8237AFront Side Bus1066/800/533 MHzMemory2 x 240-pin DIMM sockets support max. 4GB DDR2 533/400 non-ECC unbuffered memoryExpansion Slots1 x PCI-E x 161 x PCI-E x 1 2 x PCI(Note: PCI-E x 1 and JMicron JMB363 SATA controller can not be used simultaneously)VGAIntegrated Graphics, up to 64MB shared memorySupport max. resolution to 2048 x 1536 (@75Hz)Support max. refresh rate to 100Hz (@1600 x 1200)Storage/RAIDVIA 8237A South Bridge:*2 x UltraDMA 133/100/66/33*2 x Serial ATA with RAID 0, 1, JBOD functionJMicron JMB363 SATA controller:*1 x Internal Serial ATA 3 Gb/s *1 x External Serial ATA 3 Gb/s (SATA On-the-Go)*supports RAID 0, 1 amp; JBODLANRealtek RTL8201CL 10/100 LAN ControllerAudioHigh Definition Audio, ADI AD1986A SoundMAX 6-channel CODECSupport Jack-Sensing interfaceUSBMax. 8 USB2.0 portsOverclocking FeaturesASUS C.P.R.(CPU Parameter Recall)SFS (Stepless Frequency Selection) from 100MGz up to 300MHz at 1MHz incrementAdjustable FSB/DDR ratio. Fixed PCI-E/SATA frequencies.Other ASUS Special FeaturesCrashFree BIOS 2ASUS Q-FanASUS EZ FlashMyLogoBIOS4 Mb Flash ROM,Award BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3ManageabilityWOL by PME, WOR by PME, Chassis Intruction, PXEBack Panel I/O Ports1 x Parallel1 x External SATA1 x VGA Port1 x PS/2 Keyboard1 x PS/2 Mouse1 x RJ454 x USB 2.0/1.16-Channel Audio I/OInternal I/O Connectors2 x USB 2.0 connectors support additional 4 USB 2.0 ports1 x COM connectorCPU / Chassis fan connector1 x S/PDIF out connectorFront panel Audio connectorCD / AUX audio-in connector24-pin ATX Power connector4-pin ATX 12V Power connectorChassis intrusion System PanelSupport DiscDriversASUS PC Probe ASUS LiveUpdate UtilityAnti-virus software (OEM version)Accessories1 x Serial ATA cables1 x SATA power cable1 x UltraDMA 133/100/66 cable1 x FDD cable1 x I/O ShieldUser's manualForm FactormATX Form Factor, 9.6”x 8.6”(23.5cm x 21.8cm)
