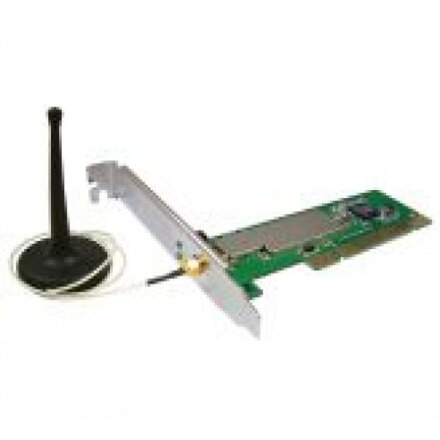

CANYON CN-WF511

Network Interface Card - Networking Specifications
Local Area Network Architecture
Wireless
Interface
PCI
Requires Expansion Slot Standard
PCI
Networking Form Factor
Plug-in-card
Data Link Protocol Supports
IEEE 802.11b, IEEE 802.11g
Network/Transport Protocol
IPX

NetBEUI

TCP/IP
Data Bit Rate
54 Mbps
Frequency
2.4 GHz
Line Modulation Type
CCK, DBPSK, DQPSK, OFDM
Max. Range Indoors
100 m
Max. Range Open Space
300 m
Encryption Algorithm
128-bit AES, 128-bit WEP, 64-bit WEP
Authentication Algorithm
WPA
Networking Compliant Standards
IEEE 802.11b, IEEE 802.11g
Antenna
external
Network Interface Card - System Requirements
Requires Operating System
Microsoft Windows 2000, Microsoft Windows 98SE, Microsoft Windows Me, Microsoft Windows XP
Network Interface Card - Miscellaneous
EAN Code
8717371840747
Network Interface Card - Environment
Maximum Operating Ambient Temperature
50 °C
Minimum Operating Ambient Temperature
0 °C
Warranty
Warranty Products returnable
Yes
Warranty Term (month)
24 month
Warranty validation Criteria
Serial Number
Logistic
Box Depth (mm)
560 mm
Box Height (mm)
290 mm
Box Weight Brutto (kg)
10.58 kg
Box Width (mm)
465 mm
Pack Depth (mm)
50 mm
Pack Height (mm)
133 mm
Pack Weight Brutto (kg)
0.23 kg
Pack Width (mm)
215 mm
Packs in Box
40
Pieces in pack
1
