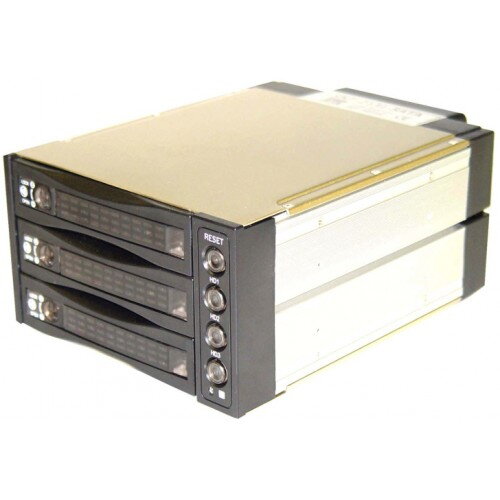

Chieftec SNT-2131-SATA 3x3.5" Hard drive in 2x5.25" Bay Hot Swap SAS/SATA Backplane RAID cage

Spec
Specifications
Maximum Capacity: 6TB ( 3 x 2TB Hard drive)

Interface: SAS/SATA I – II



Transfer rate: Up to 3Gbps(SAS amp; SATA-II) and 1.5Gbps(SATA-l)



RAID Level: 0 / 1 / 5



Material: Aluminum



Cooling fan: 80mm w/high (3600rpm) or low(2400rpm) adjustable speed



LED: Hard drive power, access, fan sensor amp; reset



Power control for each hard drive



Safety lock on each tray



Overheating alarm amp; reset switch



Unique balance handle- No skew in/out problems



Hot Swap: Yes



Color: Black



Plug amp; play

ROHS ready
Features
Features
SAS / SATA Hard drive compatible



Included 27" SATA cables and screws for installation



Maximize storage capacity up to 6 TB ( 3 x 2TB HDD)



Aluminum design with heat conductive grooves



Support RAID 0, 1, 5



Plug and play, hot swappable



LED for power, HDD access, fan sensor and reset



Sensor, power control and Buzzer alarm when hard drive is overheating



80mm cooling fan x1 for best air ventilation



Unique Handle design with mechanical lock



Balance handle-No skew in/out problem



High/Low fan speed controls



Jumper controlled temperature alarm (55°C, 60°C "Default", 65°C)



LEDs continuously report hard drive and fan activity



No software or drivers required; OS independent



Included 27" SATA cables and screws for installation
