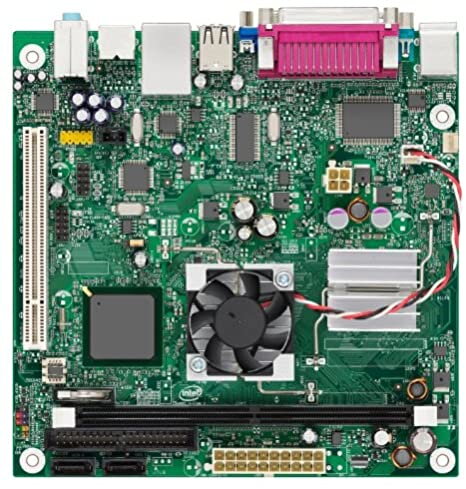

Intel D945GCLF2/D945GCLF2D with integrated Intel Atom 330 processor

Form factor
Mini-ITX /micro-ATX compatible (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters])
Processor
Integrated Intel® Atom™ processor 330 with a 533 MHz system bus
Memory
One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 533/667 MHz DIMMs
Support for up to 2 GBΣ of system memory
Chipset
Intel® 945GC Express Chipset and
Intel® I/O Controller Hub 7 (ICH7)
This document is intended for Original Equipment Manufacturers and BIOS vendors creating Intel I/O Controller Hub 7 (ICH7) Family based products. This document is the datasheet for the following:Intel 82801GB ICH7 (ICH7), Intel 82801GR ICH7 RAID (ICH7R) and Intel 82801GBM ICH7 Mobile (ICH7-M).
File Type/Size: PDF 6735KB
Audio
Realtek* ALC662 audio codec (5.1 channel HD audio)
Video
Intel® Graphics Media Accelerator 950 and optional S-video output support (only available on D945GCLF2)
I/O Control
SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports
LAN Support
10/100/1000 Mbps LAN subsystem using the Realtek* LAN adapter device
Peripheral interfaces
Eight USB 2.0 ports
Two Serial SATA ports (3.0 GB/s)
One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
One serial port
One parallel port
PS/2* keyboard and mouse ports
Expansion capabilities
One PCI Conventional* bus connector

+I/O shield krytka
