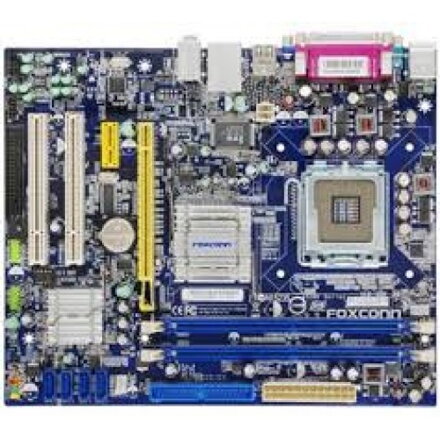

Foxconn 45GMX

SPECS
GENERAL
Chipset TypeIntel 945G Express / Intel ICH7
Compatible ProcessorsPentium 4, Celeron D, Pentium D, Core 2 Duo, Pentium Dual Core, Celeron 400 sequence
Processor SocketLGA775 Socket
Max Bus Speed1333 MHz
Max Processors Qty1
ManufacturerFoxconn
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage InterfacesIntel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces1 x audio - 4 pin MPC
1 x floppy
Additional Connectors (Optional)4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111C
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 3.0
CACHE MEMORY
Typenone
MISCELLANEOUS
Compliant StandardsPlug and Play
Microsoft CertificationsCertified for Windows Vista
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC662
VIDEO
Video Outputgraphics adapter
Graphics ProcessorIntel GMA 950
GRAPHICS
Graphics ControllerIntel GMA 950
Memory Allocation TechnologyDynamic Video Memory Technology 3.0
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Typesound card
Audio CodecRealtek ALC662
Audio6-channel
RAM
Max Supported Size2 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111C
SUPPORTED RAM
Bus Clock667 MHz, 533 MHz, 400 MHz
FeaturesDual channel memory architecture
SpeedPC2-5300, PC2-4300, PC2-3200
Max Size2 GB
TechnologyDDR2
HEADER
BrandFoxconn
Product LineFoxconn
Model45GMX
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron 400 sequence, Celeron D, Core 2 Duo, Pentium 4, Pentium D, Pentium Dual Core
Data Bus Speed1333 MHz
Chipset TypeIntel 945G Express
I/O ControllerIntel ICH7
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed400 MHz, 533 MHz, 667 MHz
Supported RAM StandardPC2-3200, PC2-4300, PC2-5300
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS FeaturesACPI support, DMI 2.5 support
Hardware Featureschassis intrusion detection
INTERFACES
StorageATA-100, Serial ATA-300
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth8 in
SOFTWARE
Software IncludedAdobe Acrobat Reader, drivers & utilities
VIDEO MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 3.0
STORAGE INTERFACES
ChipIntel ICH7
InterfaceATA-100, Serial ATA-300
Connector(s)1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty2, 4
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
BIOS FeaturesACPI support, DMI 2.5 support
Hardware FeaturesChassis intrusion detectionGENERAL
ManufacturerFoxconn
