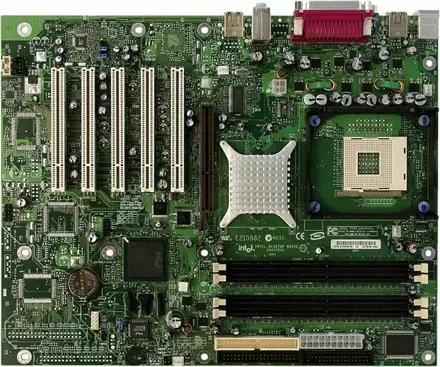

Intel D865PERL (Rock Lake)

CPU Interface
Socket-478
Chipset
Intel 82865PE MCH (North Bridge)
Intel 82801ER ICH5R (South Bridge)
Bus Speeds
N/A
Core Voltages Supported
N/A
I/O Voltages Supported
N/A
DRAM Voltages Supported
N/A
Memory Slots
4 184-pin DDR DIMM Slots
Expansion Slots
1 AGP 8X Slot
5 PCI Slots
Onboard IDE RAID
N/A
Onboard USB 2.0/IEEE-1394
Eight USB 2.0 ports supported through South Bridge
Agere FW323 IEEE-1394 FireWire controller (up to 3 ports available)
Onboard LAN
Intel PRO/1000CT Gigabit LAN (CSA bus)
Onboard Audio
Analog Devices AD1985 Controller
Onboard Serial ATA
Two SATA connectors via ICH5R (RAID 0 & RAID 1 only)
