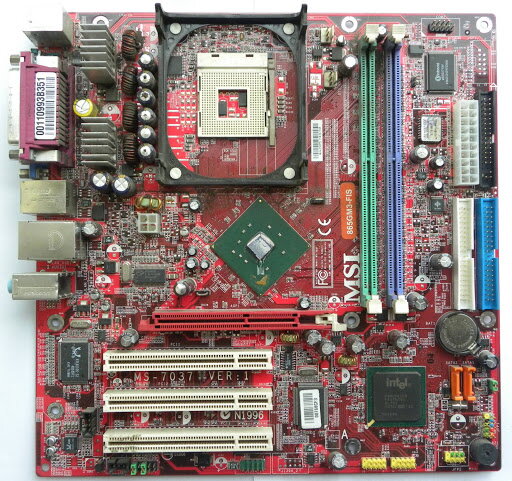

MSI 865GM3-FIS

GENERAL
Product TypeMotherboard - micro ATX
Chipset TypeIntel 865G / Intel ICH5
Compatible ProcessorsPentium 4, Pentium 4 Extreme Edition
Processor SocketSocket 478
Max Bus Speed800 MHz
Max Processors Qty1
ManufacturerMSI Computer Corp.
STORAGE CONTROLLER
Interface TypeSerial ATA-150
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 184-pin (2.5 V)
1 x AGP 8x (1.5 V/ 0.8 V)
3 x PCI (3.3 V/ 5 V)
Storage InterfacesSATA-150 -connectors: 2 x 7pin Serial ATA
ATA-100 -connectors: 2 x 40pin IDC
Internal Interfaces1 x floppy
Additional Connectors (Optional)4 x USB 2.0
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN, PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet
NetworkEthernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 2.0
MISCELLANEOUS
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC655
Compliant StandardsAC '97
VIDEO
Video Outputgraphics adapter
Graphics ProcessorIntel Extreme Graphics 2
GRAPHICS
Graphics ControllerIntel Extreme Graphics 2
Memory Allocation TechnologyDynamic Video Memory Technology 2.0
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsAC '97
Signal ProcessorIntel 865G
Typesound card
Audio CodecRealtek ALC655
Audio6-channel
RAM
Max Supported Size2 GB
Featuresdual channel memory architecture
LAN
Network InterfacesEthernet
STORAGE CONTROLLER (2ND)
Controller Interface TypeATA-100
SUPPORTED RAM
Bus Clock400 MHz, 333 MHz, 266 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC3200, PC2700, PC2100
TechnologyDDR
Max Size2 GB
HEADER
BrandMSI
Product LineMSI
Model865GM3-LS
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketSocket 478
Compatible ProcessorsPentium 4, Pentium 4 Extreme Edition
Data Bus Speed800 MHz
Chipset TypeIntel 865G
I/O ControllerIntel ICH5
Supported RAM TechnologyDDR SDRAM
Supported RAM Speed266 MHz, 333 MHz, 400 MHz
Supported RAM StandardPC2100, PC2700, PC3200
Supported RAM (Registered or Buffered)unbuffered
MAINBOARD FEATURES
BIOS TypeAward
BIOS FeaturesDMI support, Hyper-Threading Technology
INTERFACES
StorageATA-100, Serial ATA-150
EXPANSION SLOTS
Total Qty1, 2, 3
Voltage1.5 V/ 0.8 V, 2.5 V, 3.3 V/ 5 V
TypeAGP 8x, CPU, DIMM 184-pin, PCI
DIMENSIONS & WEIGHT
Width9.6 in
Depth9.6 in
SOFTWARE
Software Includeddrivers & utilities
VIDEO MEMORY
Memory Allocation TechnologyDynamic Video Memory Technology 2.0
STORAGE INTERFACES
InterfaceATA-100, Serial ATA-150
Connector(s)2 x 40pin IDC, 2 x 7pin Serial ATA
INTERNAL INTERFACES
Typefloppy
Qty1
FEATURES
BIOS TypeAward
BIOS FeaturesDMI support, Hyper-Threading TechnologyGENERAL
ManufacturerMSI Computer Corp.
