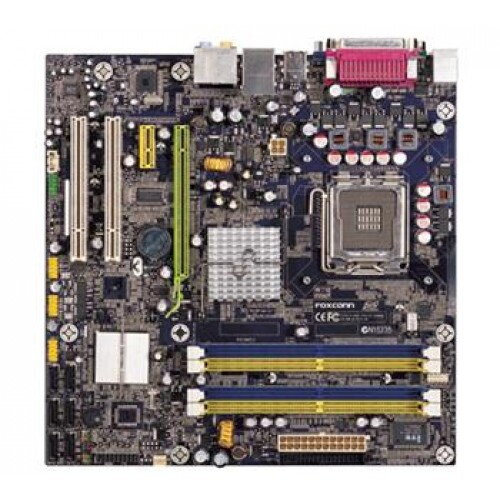

Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® D, Pentium® 4, Celeron® D processors , Socket T (LGA775)
1066 / 800 / 533 MHz (FSB)
Dual Channel DDR2 800 / 667 / 533 x 4 DIMMs, Max. 8GB
1 x PCIe x16, 1 x PCIe x1, 2 x PCI
SATAII x 6 with RAID 0, 1, 5, 0+1
7.1 channel Audio, Realtek (HDA)
GbE LAN (Intel)
10 USB 2.0 ports
Processor Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® D, Pentium® 4, Celeron® D processors , Socket T (LGA775)
Chipset Intel Q965 & ICH8DO
Front Side Bus 1066 / 800 / 533 MHz (FSB)
Memory Dual Channel DDR2 800 / 667 / 533 x 4 DIMMs, Max 8GB
VGA on Die Integrated
Expansion Slots 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE N/A
Serial ATA(SATA)/RAID SATAII x 6 with RAID 0, 1, 5, 0+1
Audio 7.1 channel Audio, Realtek ALC888 (HDA)
LAN GbE LAN, Intel Nineveh 82566DM (PCIe)
IEEE1394 N/A
Back Panel I/O Ports 1 set 7.1 channel Audio jack (6 jacks)
1 x PS/2keyboard
1 x PS/2mouse
4 x USB 2.0
1 x serial
1 x parallel
1 x RJ45
1 x VGA
Internal I/O Connectors 3 x USB 2.0 headers support 6 ports
1 x Audio header
1 x Buzzer
1 x IrDA header
1 x Front Panel header
1 x AUX-in header
1 x Serial port header
1 x Intrusion Alarm header
1 x S/PDIF out
1 x BIOS protect header
1 x RM
1 x Heatsink
1 x TPM header
BIOS Features ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0
Support CD Drivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability PCI 2.3, USB2.0, DMI 2.0
Special Features BIOS PXE Supports
Form Factor Micro ATX (9.6"x9.6")
