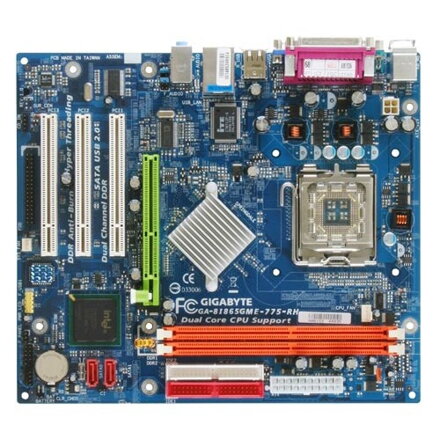

GIGABYTE GA-8I865GME-775-RH (rev. 1.x)

CPU
LGA 775 for Intel® Pentium® D / Pentium® 4 processor
Chipset
North Bridge : Intel® 865G GMCH
South Bridge : Intel® ICH5
Realtek ALC653 Codec
EP82562G chip (10/100Mbit)
Front Side Bus
800 / 533 MHz FSB
Memory
Type: Dual Channel DDR 400 / 333 / 266 support
Max capacity: 2 GB
DIMM slots: 2
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Internal I/O Connectors
1 20-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
2 IDE connectors
2 SATA connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 power LED connector
1 USB 2.0/1.1 connectors for additional 2 ports by cables
Expansion Slots
1 x AGP 8x slot
3 x PCI slots
Back Panel Connectors
1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 serial port (COMA)
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
3 audio jacks (Line In / Line Out / MIC In)
Form Factor
Micro ATX
24.4cm x 21.2cm
H/W Monitoring
System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU / System fan failure warning
CPU smart fan control
BIOS
3Mbit flash ROM
Use of licensed AWARD BIOS
Other Features
Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune 5 (only supports Hardware Monitor function)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS rescue

+I/O shield krytka
