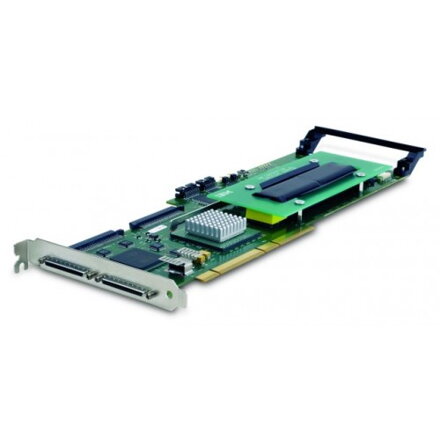

IBM ServeRAID-4Mx, Ultra160 SCSI Controllers 06P5737

The advanced ServeRAID-4Mx and -4Lx Ultra160 SCSI controllers, updated to 66MHz PCI bus performance, deliver excellent performance, scalability, and control for mid- and entry-range storage environments.
New offerings join the popular ServeRAID-4 family to provide:
Compatibility with current line
Same ease-of-use and setup features
Common support requirements across the enterprise
High-performance features include:
Wide band-width
Supports 64- or 32-bit PCI installations
High-speed, 66 MHz PCI bus performance
Supports Ultra160 SCSI technology - 160 MB/s data transfers
Industry-leading RAID support - levels 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
IBM X-architected Active PCI
Supports clustering and failover
Excellent price/performers for basic- to moderate- RAID data storage
Three-year, limited warranty
Warranty
3 year Customer Carry-In/Exchange
Packaging

You will receive one box containing the following items:
Controller card assembly
ServeRAID support CD-ROM
ServeRAID User's Guide/Warranty
Product marketing and replacement part numbers (FRU)
Worldwide
Description
Marketing part number
Replacement part number(FRU)
ServeRAID 4Mx
06P5736
Adapter - 06P5737

Battery - 37L6903
ServeRAID 4Mx (Japan)
06P5738
Adapter - 06P5739

Battery - 00N9561
ServeRAID 4Lx
06P5740
Adapter - 06P5741
Product dates


Worldwide
Announce date: 22 May 2001
Planned availability date: 30 May 2001
Withdrawal date: 28 Oct 2003
Technical specifications
Physical, environmental, and compatibility specifications as known at time of announcement
ServeRAID-4Mx Ultra160 SCSI Controller:
Up to 66 MHz PCI bus speed
64-bit, full-length PCI adapter card
Two VHDCI .8 mm external connectors
Two internal, industry standard, 68-pin connectors
Two RAID channels
Supports Ultra160 SCSI (160 MB/s)
ServeRAID-4Lx Ultra160 SCSI Controller:
Up to 66 MHz PCI bus speed
64-bit, half-length PCI adapter card
One VHDCI .8 mm external connector
One internal, industry standard, 68-pin connector
One RAID channel
Supports Ultra160 SCSI (160 MB/s)
The above Ultra160 SCSI controllers are backward compatible with legacy SCSI modes:
Wide Ultra2 SCSI (80 MB/s)
Wide Ultra SCSI (40 MB/s)
Fast/Wide SCSI (20 MB/s)
Operating temperature
Between 10 to 35 degrees C (50 to 95 degrees F) at 0m to 914m (0 to 3,000 ft.)
Between 10 to 32 degrees C (50 to 90 degrees F) at 914m to 2,133m (3,000 to 7,000 ft.)
Relative humidity
Operating: between 8% and 80%
Agency approvals
Verified to comply with Part 15 of the FCC Rules for a Class A digital device
CISPR-22:1997
AS/NZS 3548: 1995, Amendment 1: 1997, Amendment 2: 1997 (C-Tick)
VCCI V-1/98.04, V-2/97.04 (Japan)
EN55022: 1998 (CE-Mark)
EN55024: 1998 (CE-Mark)
CNS-13438 BSMI (Taiwan)
ENERGY STAR-Compliant

No. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.
Hardware requirements for IBM systems
System
Machine type
ServeRAID 4Lx
ServeRAID 4Mx
xSeries 200
8478
Yes
Yes
xSeries 220
8645
Yes
Yes
xSeries 230
8658
Yes
Yes
xSeries 240
8664(1)
Yes
Yes
xSeries 250
8665(1)
Yes
Yes
xSeries 300
8672
Yes
Yes
xSeries 330
8654(2)
Yes
Yes
xSeries 340
8656
Yes
Yes
xSeries 350
8682(1)
Yes
Yes
xSeries 370
8681(1)
Yes
Yes
Netfinity 4500R
8656
Yes
Yes
Netfinity 5000
8659
Yes
Yes
Netfinity 5100
8658
Yes
Yes
Netfinity 5600
8664(1)
Yes
Yes
Netfinity 6000R
8682(1)
Yes
Yes
Netfinity 7100
8666(1)
Yes
Yes
Netfinity 7600
8665(1)
No
Yes
Netfinity 8500R
8681(1)
No
Yes
Compatibility (The ServeRAID Ultra160 controllers can be attached to the following devices)
Netfinity EXP200
35301RU
Yes
Yes
Netfinity EXP300
35311RU
Yes
Yes
Cable options
Netfinity 2M Ultra2 SCSI Cable
03K9310
Yes
Yes
Netfinity 4.3M Ultra2 SCSI Cable
03K9311
Yes
Yes
Netfinity 20M Ultra2 SCSI Cable
37L7101
Yes
Yes
(1) To support hot-adding of the ServeRAID-4Mx and 4Lx controllers on these servers, the following updates must be installed:
Windows 2000 - IBM Active PCI Software for Windows 2000 2 v1.0.0.9 2.
Windows NT - IBM Hot-Plug for Windows NT4.0 Package v4.2 2.
NetWare - IBM Hot Plug PCI System Bus Driver (v1.08b for 2 active PCI servers except xSeries 370/Netfinity 8500R and 2 v1.10a for xSeries 370/Netfinity 8500R).
(2) Only one ServeRAID-4 controller is supported in this server due to system ROM limitations.
Hardware requirements for non-IBM systems
N/A
Software requirements
NetWare 4.2
NetWare 5.1
Windows NT 4.0 Server
Windows NT 4.0 Enterprise Edition
Windows 2000 Advanced Server
Windows 2000 Server
SCO Open Server 5.0.6
UnixWare 7.1.1
Linux - Red Hat 6.2, 7.0
IBM OS/2 Warp Server Advanced V4.0 SMP
IBM OS/2 Server for e-Business V5.0
Limitations
None
