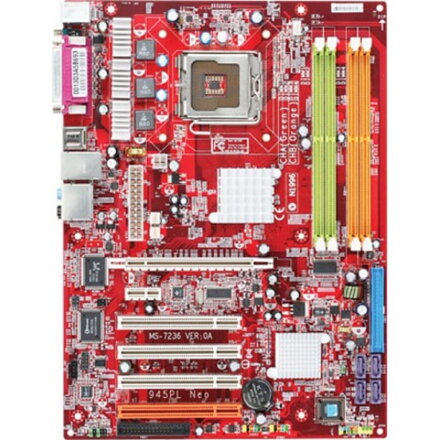

MSI 945PL NEO3

SPECS
GENERAL
Chipset TypeIntel 945PL Express / Intel ICH7
Compatible ProcessorsPentium 4, Pentium 4 Extreme Edition, Celeron D, Pentium D, Core 2 Duo
Processor SocketLGA775 Socket
Max Bus Speed800 MHz
Max Processors Qty1
ManufacturerMSI Computer Corp.
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
4 x DIMM 240-pin (1.8 V)
1 x PCIe x16
1 x PCIe x1
4 x PCI
Storage InterfacesIntel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces1 x floppy
1 x audio - 4 pin MPC
Additional Connectors (Optional)4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8110SC
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC850
Compliant StandardsAC '97, High Definition Audio
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsAC '97, High Definition Audio
Typesound card
Audio CodecRealtek ALC850
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size2 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8110SC
SUPPORTED RAM
Bus Clock533 MHz, 400 MHz
FeaturesDual channel memory architecture
SpeedPC2-4300, PC2-3200
Max Size2 GB
TechnologyDDR2
HEADER
BrandMSI
Product LineMSI
Model945PL Neo3-F
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron D, Core 2 Duo, Pentium 4, Pentium 4 Extreme Edition, Pentium D
Data Bus Speed800 MHz
Chipset TypeIntel 945PL Express
I/O ControllerIntel ICH7
Supported RAM TechnologyDDR2 SDRAM
Supported RAM Speed400 MHz, 533 MHz
Supported RAM StandardPC2-3200, PC2-4300
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS FeaturesACPI 2.0 support, DMI support, Hyper-Threading Technology
Hardware FeaturesMSI CoreCell
INTERFACES
StorageATA-100, Serial ATA-300
EXPANSION SLOTS
Total Qty1, 4
Voltage1.8 V
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width8.9 in
Depth12 in
STORAGE INTERFACES
ChipIntel ICH7
InterfaceATA-100, Serial ATA-300
Connector(s)1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty2, 4
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
Hardware FeaturesMSI CoreCell
BIOS FeaturesDMI support, ACPI 2.0 support, Hyper-Threading Technology
